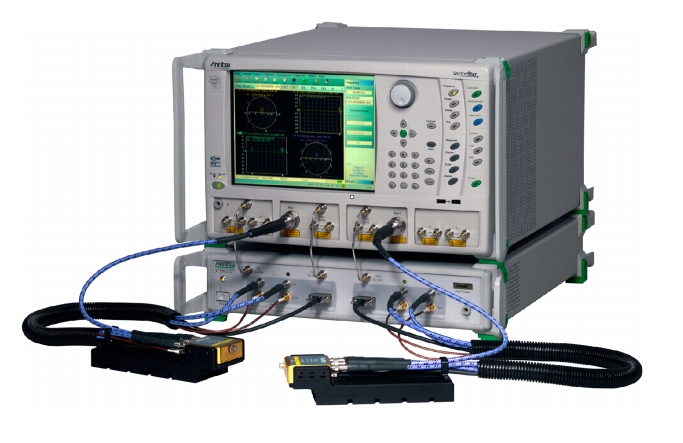

VectorStar™ MS4640A Series Microwave Vector Network Analyzer Help

VectorStar™ MS4640A Series Microwave Vector Network Analyzer Help
Introduction
The VectorStar Help system provides a comprehensive, cross-platform compilation of user documentation for the VectorStar MS4640A Series VNA instrument. The Help system contents are available as standalone PDF documents both on the documentation disc that accompanied the instrument and are also available for download from the Anritsu web site.
Source Content
The VectorStar MS4640A VNA Help System is generated from the following documents:
Part Number
Revision
Document Title and Content Summary
10410-00266
L
Operation Manual (OM). The OM contains:
• Basic setup information and configuration
• Front and rear panel control and connector identification
• Initial checkout procedure
• VNA instructional primer
10410-00307
E
User Interface Reference Manual (UI-RM). The UI-RM provides:
• Descriptions of every menu and dialog box in the UI.
• Suggestions for typical procedures such as calibration or markers.
• The instrument context-sensitive help is derived from the UI-RM content.
10410-00267
L
Programming Manual (PM). The PM contains the following:
• VNA programming introduction
• Command descriptions for IEEE, system, troubleshooting, and SCPI commands.
• Programming examples with LabView, LabWindows, VISA/C#, and Legacy Drivers.
10410-00308
C
Programming Manual Supplement (PMS). The PMS contains the following:
• Anritsu 37xxxX Lightning Supported and Non-Supported Commands
• HP8510 Supported Commands
• System limit parameters
10410-00269
L
Calibration and Measurement Guide (MG). The MG describes:
• Calibration theory and methodology along with descriptions of calibration kits, verification kits, and verification software.
• Measurement approaches and methods.
• Both 2-Port and 4-Port operations are described.
Build: 201505201521
