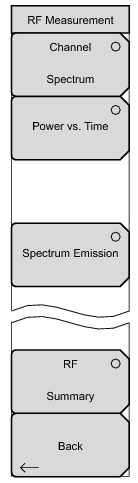

Channel Spectrum: Displays the spectrum of the input signal. The span is automatically set to 5 MHz. Beneath the graph, values for the following, measurements are displayed: Left Channel Power, Channel Power, Right Channel Power, Left Channel Occ BW, Occ BW, and Right Channel Occ BW. Channel Power is displayed in dBm or watts depending on unit selection.
RF Summary: Press this submenu key to display the following RF measurements in table format:
Back: Press this submenu key to return to
“Measurements Menu”.
