AM/FM/PM Analyzer (Option 509) : Audio Waveform PM Menu

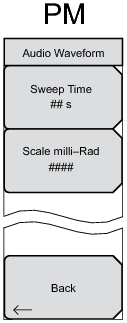

Audio Waveform PM Menu
Key Sequence: Measure or (Shift + 4) > Audio Waveform > Audio Waveform
Sweep Time
Press to set the sweep time. If you use the numeric keypad to enter a value, then the submenu keys change to Time in units of s, ms, µs, ns, or ps.
Scale milli-Rad
Press to set the sweep scale in milliradians. Use the numeric keypad, the rotary knob, or the arrow keys to enter a value.
