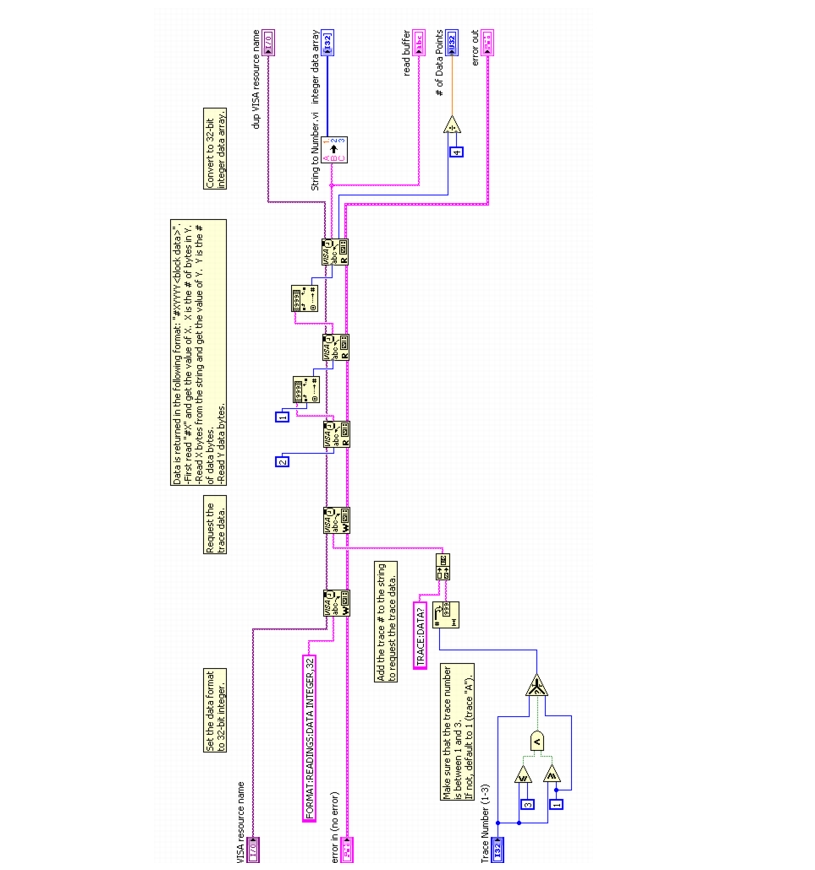

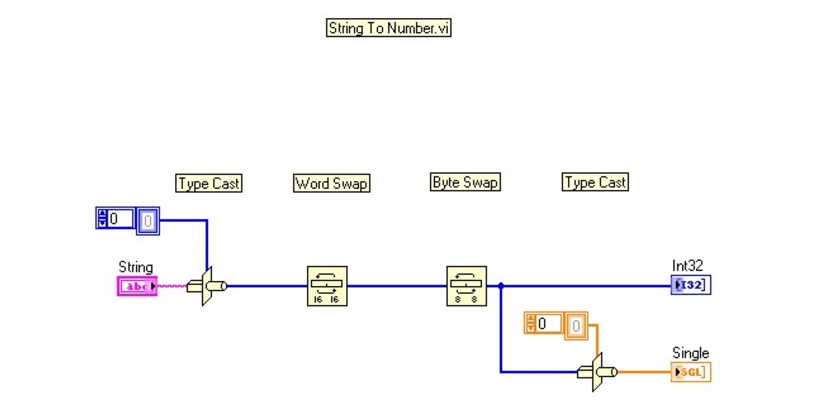

This example shows how to read the trace data from the instrument in 32-bit integer format. The output is an array of data point magnitudes. Figure: “Data Capture” shows the data capture and conversion to 32-bit integers in the format used by LabVIEW. Figure: “Data Conversion” shows the details of the conversion.
|
Your instrument must first be defined to the VISA resource manager using NI-MAX. The VISA resource for your instrument serves as the VISA resource input to the vi.
|
 |
 |
