Power versus Time

The Power versus Time view shows the time domain view of a Mobile WiMAX signal over approximately one frame. The screen also displays Channel Power (RSSI), Downlink Burst Power, Uplink Burst Power, and Preamble Power. The sample image in Figure: “Mobile WiMAX Power versus Time Measurement” may differ from any image on your instrument.

Press the Power vs Time submenu key to select the measurement.

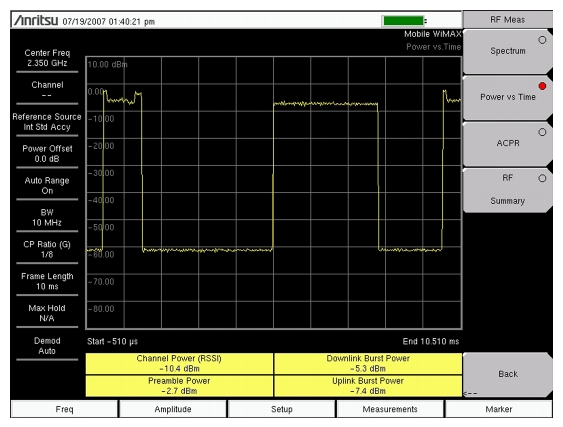

Mobile WiMAX Power versus Time Measurement
