The instrument displays the constellation of the demodulated data symbols over one frame. The various constellations are color coded as follows:
 |

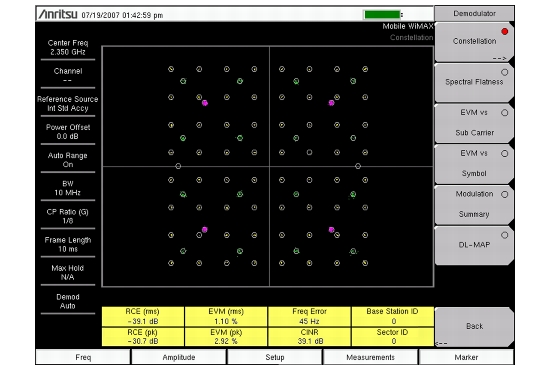

The numerical results that are displayed in this view are: RCE (rms) in (dB), RCE (pk) in (dB), EVM (rms) in (%), EVM (pk) in (%), Freq Error in (Hz), CINR, Base Station ID, and Sector ID. The sample image in Figure: “Mobile WiMAX Demodulator Constellation Measurement” may differ from any image on your instrument.
|
1.
|
Press the Constellation submenu key to activate the measurement.
|
|
2.
|
|
3.
|
