Press the Measurements main menu key to select measurement display options.

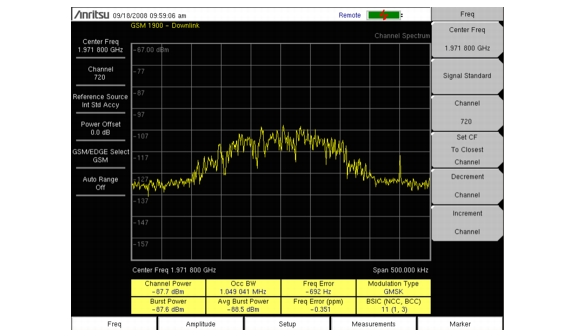

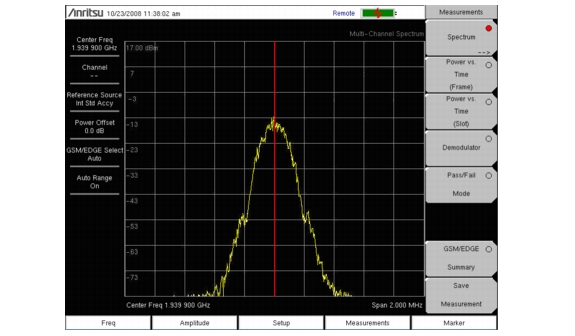

To display Spectrum, press the Spectrum submenu key. Press the Channel Spectrum submenu key for a single channel (Figure 2‑1), or the Multi-Channel Spectrum submenu key to display the multi-channel spectrum (Figure 2‑2).
 |
 |

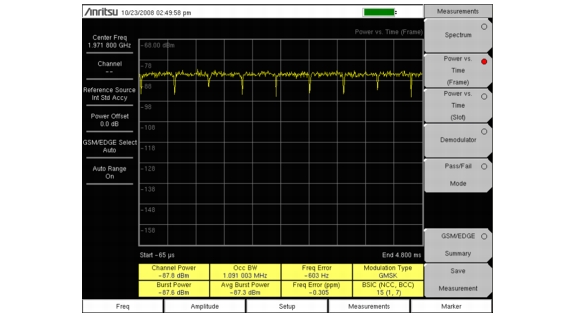

To display Power versus Time (Frame) press the Power versus Time (Frame) submenu key to activate the Power versus Time (Frame) measurement (Figure 2‑3).
 |
To display Power versus Time (Slot) press the Power versus Time (Slot) submenu key to activate the Power versus Time (Slot) measurement (Figure 2‑4). The mask is according to the 3GPP TS 05.05 specification. The first slot information is displayed.
 |
