Vertical Range (Inband Spectrum) Menu

Press one of the four submenu keys in this menu to set the y-axis of the Inband Spectrum graph.

Key Sequence: Measurements > Inband Spectrum > Vertical Range

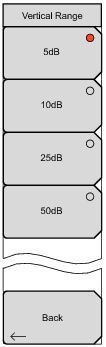

Vertical Range Menu (Inband Spectrum)

Press one of these submenu keys to set the y‑axis of the Inband Spectrum graphs.   5dB     10dB       25dB     50dB Press this submenu key to set y‑axis scale of the Inband Spectrum graphs to 50 dB.       Back Press this submenu key to return to the Inband Spectrum Menu.
