Delay Profile Vertical Range Menu

Key Sequence: Meas Setup > Delay Profile > More > Delay Profile Vertical Range

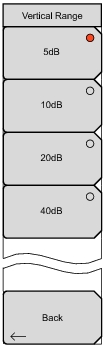

Vertical Range Menu (Delay Profile)

Press one of these submenu keys to set the y‑axis scale for both Delay Profile graphs.

5dB

10dB

20dB

40dB

Back

Press this submenu key to the Meas Setup (2/2) (Delay Profile) Menu.

Vertical Range Menu (Delay Profile)
	Press one of these submenu keys to set the y‑axis scale for both Delay Profile graphs. 5dB 10dB 20dB 40dB Back Press this submenu key to the Meas Setup (2/2) (Delay Profile) Menu.
