Inband Spectrum Vertical Range Menu

Key Sequence: Meas Setup > Inband Spectrum > More > Inband Spectrum Vertical Range

Vertical Range Menu (Inband Spectrum)

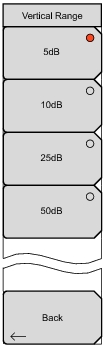

Press one of these submenu keys to set the y‑axis scale for the Inband Spectrum graphs.   5dB       10dB     25dB     50dB           Back Press this submenu key to return to the Meas Setup (2/2) (Inband Spectrum) Menu.



Vertical Range and Correlating dB Values

Vertical Range with Correlating dB Value

Vertical Range (dB)	Value (dB)
5	1 to – 4
10	2 to – 8
25	5 to – 20
50	10 to – 40
