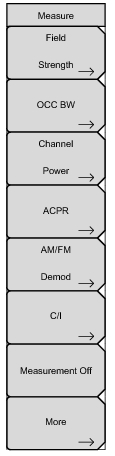

This measurement allows the use of an antenna with known gain characteristics and measures the field strength over the frequency range of the antenna in units of dBm/meter, dbV/meter, dBmV/meter, dBµV/meter, volts/meter or watts/meter. Opens the
“Field Strength Menu” on page 2‑42.
Opens the “OCC BW Menu” on page 2‑42. Select either % or dBc method of occupied bandwidth measurement.
Activates the Channel Power measurement function. Channel Power and Channel Power Density are measured based on the selection in the Units menu. Opens the
“Channel Power Menu” on page 2‑43.
The user can select AM, Narrow Band FM (300 µs de-emphasis), Wide Band FM (50 µs de-emphasis), Upper Sideband or Lower Sideband. See the
“AM/FM Demod Menu” on page 2‑45.
The Carrier to Interference ratio is a two-step measurement sequence that first measures the amplitude of a carrier, then, with the carrier turned off, measures the amplitude of all other interfering signals within the channel bandwidth. See the
“C/I Menu” on page 2‑46.
