Trace Menu

Key Sequence: Shift > Trace (5)

To access the functions under the Trace menu, press the Shift key, then the Trace (5) key. The instrument is capable of displaying up to three traces, one with live data, and the other two either with stored data or trace math data.

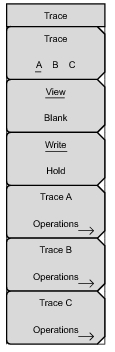

SPA Trace Menu

Trace A, B, C Sets trace A, B, or C as the active trace. Continually pressing this key toggles through trace A, B, and C. The active trace is underlined. View/Blank Displays or hides the active trace. Write/Hold Selects between holding the current swept trace on the screen or continually sweeping and updating the displayed measurement. This is not applicable to Trace B or Trace C unless trace math involving Trace A is active. Trace A Operations Lists the Trace A Ops menu to select an operation that can be applied to Trace A. See “Trace A Ops Menu” on page 2‑49. Trace B Operations: Lists the Trace B Ops menu to select an operation that can be applied to Trace B. See “Trace B Ops Menu” on page 2‑50. Trace C Operations Lists the Trace C Ops menu to select an operation that can be applied to Trace C. See “Trace C Ops Menu” on page 2‑51.
