Measurements Menu

Key Sequence: Measurements

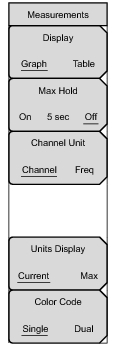

CHS Measurements Menu

Display Graph/Table Toggles the display between table and graph formats, see Figure 5‑9 and Figure 5‑10 for examples of the two formats. Max Hold On/5 sec/Off Turns on or off small yellow lines for every channel/frequency on the display that indicate the highest level that channel or frequency has reached. The 5 sec option holds the small yellow line at the highest level in the last 5 seconds. Channel Units Channel/Freq Toggles the display channel units between channel number and frequency. Units Display Current/Max The current power units are displayed at the bottom of the channels, or the maximum power is displayed (activated only when Max Hold is set to On or 5 sec). Color Code Single/Dual Channels can be represented in one color or two alternating colors.



Note	Screen captured images are provided as examples. Measurement details shown on your instrument may differ from the examples in this user guide

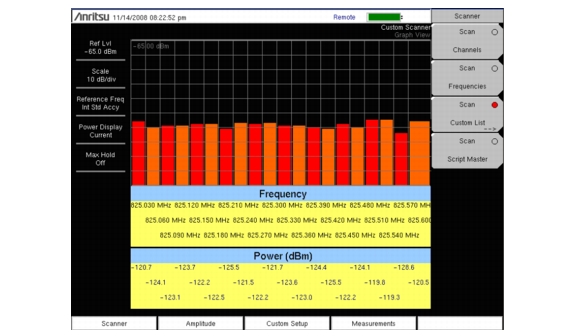

Channel Scanner Graph Display

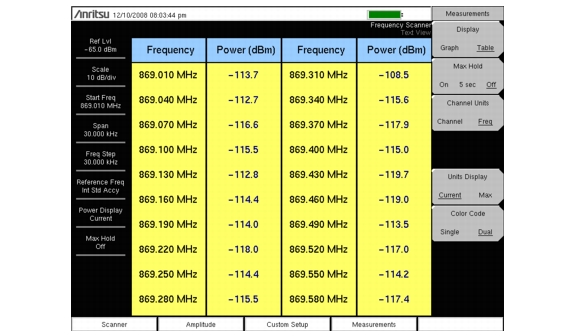

Channel Scanner Table Display
