Measure Menu

Key Sequence: Measurements > Spectrum

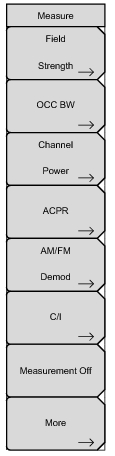

IA Spectrum Menu

Field Strength This measurement allows the use of an antenna with known gain characteristics and measures the field strength over the frequency range of the antenna in units of dBm/m2, dBV/m, dBmV/m, dBµV/m, Volt/m or watts/m2. Opens the “Field Strength Menu” on page 3‑36. OCC BW Opens the “OCC BW Menu” on page 3‑36. Select either % or dBc method of occupied bandwidth measurement. Channel Power Activates the Channel Power measurement function. Opens the “Channel Power Menu” on page 3‑37. ACPR Accesses a menu of Adjacent Channel Power Ratio measurement options. See the “ACPR Menu” on page 3‑38. AM/FM Demod The user can select AM, Narrow Band FM (300 µs de-emphasis), Wide Band FM (50 µs de-emphasis), Upper Sideband or Lower Sideband. See the “AM/FM Demod Menu” on page 3‑39. C/I The Carrier to Interference ratio is a two-step measurement sequence that first measures the amplitude of a carrier, then, with the carrier turned off, measures the amplitude of all other interfering signals within the channel bandwidth. See the “C/I Menu” on page 3‑40. Measurement Off Turns the measurement off. More: Opens the “Measure 2/2 Menu” on page 3‑41.
