Power versus Time
The Power versus Time view shows the time domain view of a WiMAX 802.16‑2004 OFDM signal over approximately one frame. The preamble is always 3 dB higher than the data. The screen also displays Channel Power (RSSI), Data Burst Power, Preamble Power, and Crest Factor.
|
2.
|
Press the Measurements main menu key.
|
|
3.
|
Press the RF submenu key.
|
|
4.
|

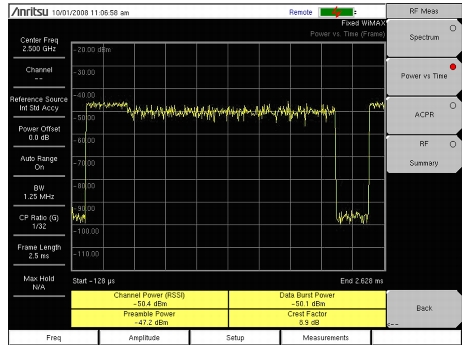

Press the Power vs Time submenu key to activate the measurement. The sample image in Figure 2‑2 may differ from any image on your instrument.
|
 |
