This view shows the EVM (rms) values versus OFDM symbols. The numerical results that are displayed in this view are: RCE (rms) in dB, RCE (pk) in dB, EVM (rms) in %, EVM (pk) in %, Freq Error in Hz, Freq Error in ppm, Carrier Frequency in Hz, Base Station ID.
|
1.
|
|
2.
|
Press the Measurements main menu key.
|
|
3.
|
Press the Demodulator submenu key.
|
|
4.
|

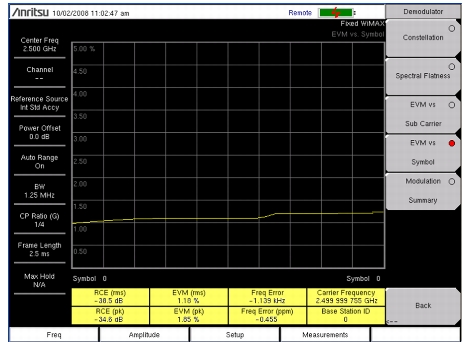

Press the EVM vs Symbol submenu key to activate the measurement. The sample image in Figure 2‑8 may differ from any image on your instrument.
|
 |
