IMD Response Menu (2-Port)
IMD RESPONSE Menu – 2-Port VNAs with IMDView Active
Previous
• RESPONSE Menu – 2-Port VNAs
Prerequisites
• VNA equipped with Option 44 – IMDView
• The application mode must be set to IMDView ON on the APPLICATION menu.
• MAIN | Application | APPLICATION
• IMDView™
Navigation
• MAIN | Response | IMD Response| IMD Config | IMD RESPONSE CONFIGURATION
The IMD RESPONSE menu is also accessible from the IMD CONFIGURATION Dialog.

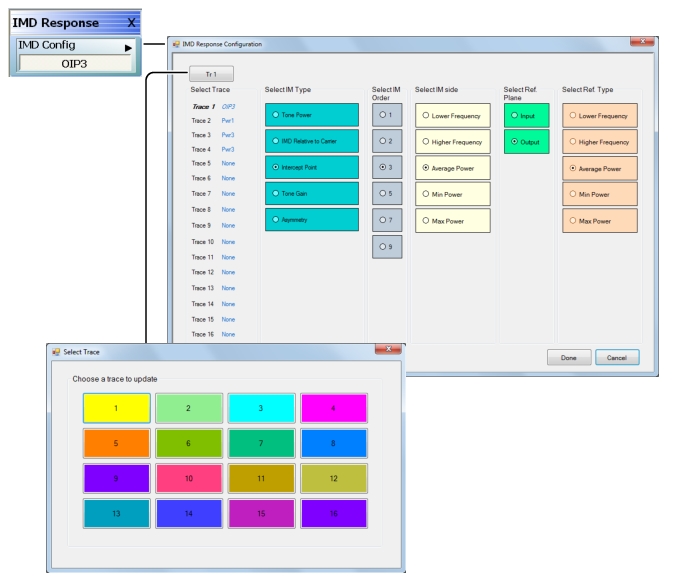

IMD RESPONSE Menu, IMD Response Configuration, and Select Trace Dialogs
