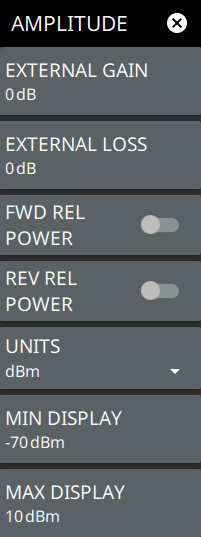

 | EXTERNAL GAIN Sets the external gain value. Minimum is 0 dB and the maximum value is 100 dB. Changes to the external gain will update the display min and max values and limit upper and lower values. EXTERNAL LOSS Sets the external loss value. Minimum is 0 dB and the maximum value is 100 dB. Changes to the external loss will update the display min and max values and limit upper and lower values. FWD REL POWER Enables or disables the forward relative power level. When turned on, power readings are made relative to the power value that was measured at the time it is turned on. The forward relative power state will turn off automatically when forward measurement mode is changed. When measurement mode is CCDF or CREST, turning on relative is not allowed. REV REL POWER Enables or disables the reverse relative power level. When turned on, power readings are made relative to the power value that was measured at the time it is turned on.The reverse relative power state will turn off automatically when reverse measurement mode is changed, and only applies when Reverse Average measurement is selected. UNITS Selects the measurement units of either dBm or watts. MIN DISPLAY Sets the minimum value of the analog scale. MAX DISPLAY Sets the maximum value of the analog scale. |
