Parameter Summary
The Parameter Summary window displays the user defined modulation analysis parameters. These parameters can be entered manually through the Parameter Setup window setup or pre-populated by selecting a modulation scheme through the Parameter Setups Standard template button.
Parameter Summary Title Bar
Parameter Summary/IQ File Summary Icons
-
Parameter Summary
Displays the current modulation parameter summary. See Parameters Descriptions.
IQ File Summary
Displays the IQ file summary. See IQ File Summary Descriptions.

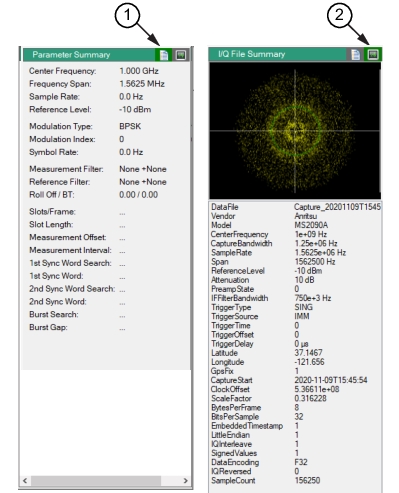

Parameter Summary and IQ File Summary
1. Parameter Summary Icon, see Parameters Descriptions.
2. IQ File Summary Icon, see IQ File Summary Descriptions.
