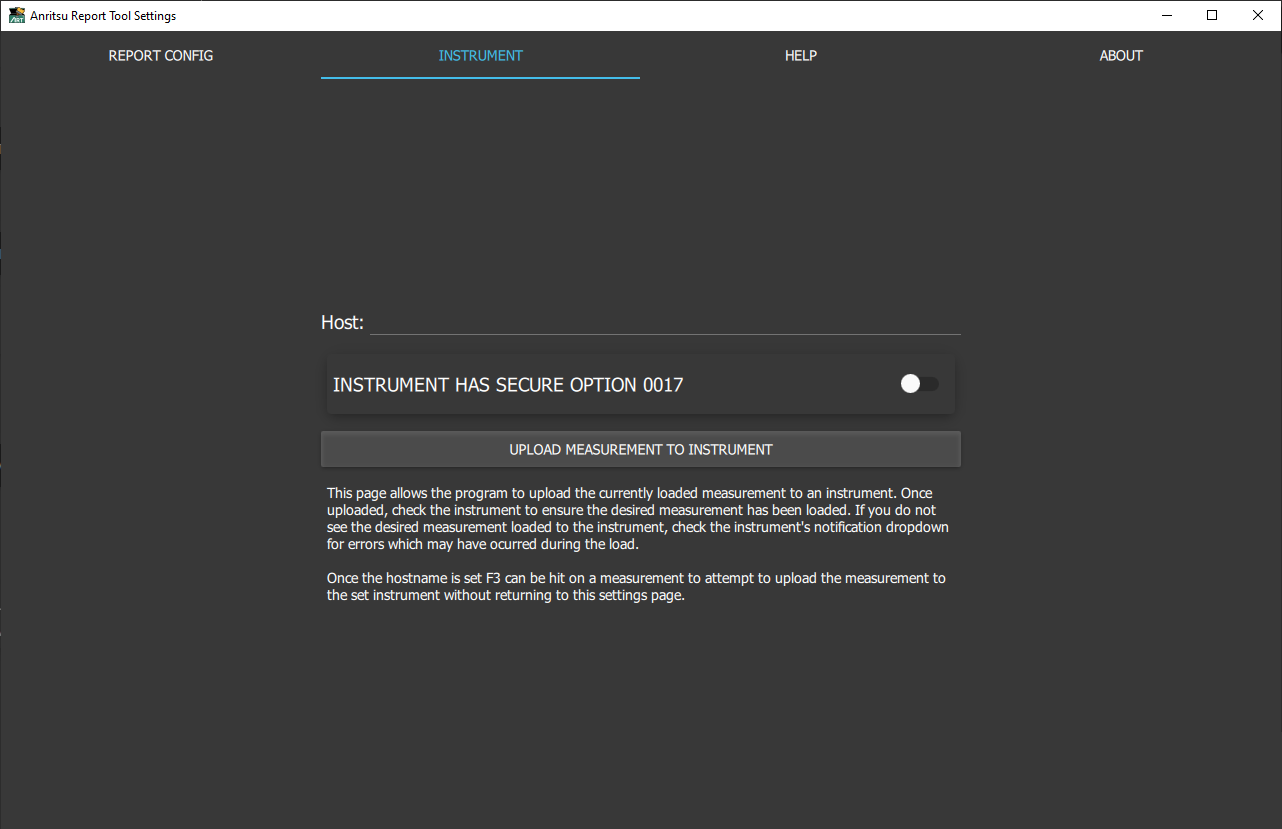

Use the Instrument tab to upload the current trace data file displayed to an Anritsu instrument. One trace data file can be uploaded at a time.
1. Connect an Ethernet cable from the PC to the instrument.
2. Enter the Host name for the instrument and switch Option 0017 if installed in the instrument. Once the Host name is entered, the program will remember the host name and it will not be necessary to enter it again.
3. Use keyboard Control - F3 to send trace data to an instrument, or press the Upload Measurement To Instrument button.
