The appearance and button availability of the calibration menus depends on the settings established in the CAL SETUP, CAL METHOD, LINE TYPE menus and in the associated dialog boxes that appear from the Edit Cal Params button.
ONE PORT CAL Menu - SOLT/R - Coaxial - 2-Port VNAs
• MAIN | Calibration | CALIBRATION | Calibrate | CALIBRATE | Manual Cal | MANUAL CAL | 1-Port Cal | ONE PORT CAL

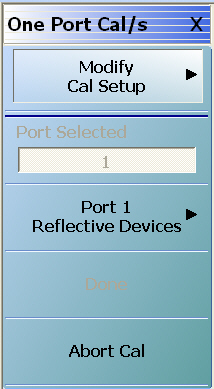

ONE PORT CAL MENU - 2-Port VNAs - Typical Example
Modify Cal Setup
Select displays the CAL SETUP menu where changes to the calibration method, line type, and associated parameters are made on the CAL METHOD and LINE TYPE submenus.
A display button showing the port numbers that are in the calibration.
Completion Menu Buttons
For this example menu, the Port 1 Reflective Devices to the Isolation (Optional) buttons link to completion submenus where additional calibration procedures are performed.
For example, the Port 1 Reflective Devices button (shown below at #1) links to the REFL. DEVICES PORT 1 submenu. As each procedure is completed, the submenu button is marked with a completion checkmark. When all the procedures on the submenu are completed, use the Back button to return to the FOUR PORT CAL menu.
The Port 1 Reflective Devices button (shown above at #2) is now marked with a completion checkmark.
Port 1 Reflective Devices
When selected, provides the PORT 1 REFLECTIVE DEVICES menu. Each button represents a completion task. When ready for the task, click the button, and the instrument performs the calibration. When the calibration task is successfully completed, the button is marked with a completion checkmark. When all tasks are completed on the menu, return to the ONE PORT CAL menu.
Thru/Recip
When selected, displays the THRU/RECIP menu. When all tasks are complete, return to the ONE PORT CAL menu.
Isolation (Optional)
When selected, displays the ISOLATION menu. When all tasks are completed, return to the ONE PORT CAL menu.
Done
This button is unavailable until all calibration tasks have been successfully completed. When available, select the button to return to the CALIBRATION menu when the Cal Status is set to ON.
The Edit Cal Params dialog boxes are populated with controls and fields that vary depending on the settings made in the MANUAL CAL, CAL SETUP, CAL METHOD, and LINE TYPE menus. Dialog box examples are:
• MAIN | Calibration | CALIBRATION | Calibrate | CALIBRATE | Manual Cal | MANUAL CAL | 1-Port Cal | ONE-PORT CAL(S) | Modify Cal Setup | CAL SETUP | Edit Cal Params | ONE-PORT CAL SETUP (SOLT/R, COAXIAL) Dialog Box
ONE-PORT CAL SETUP (SOLT/R, COAXIAL) Dialog Box - 2-Port VNAs
Reference Impedance
Input the reference impedance.
• Input field defaulted to 50 Ohms.
• Any numerical value accepted although input values <0.01 Ohms are converted to 0.01 Ohms.
Test Port 1
At least one test port (Test Port 1 or Test Port 2) must be selected. Both test ports may be selected.
Use the check box to select Test Port 1. If the check box is not selected, all Test Port 1 fields and controls are unavailable. If selected, the following controls are available:
DUT Connector Type Field
Select the DUT Connector Type from a drop-down menu list with options of:
• 0.8 mm (M)
• 0.8 mm (F)
• W1-Conn (M)
• W1-Conn (F)
• V-Conn (M)
• V-Conn (F)
• K-Conn (M)
• K-Conn (F)
• 2.4 mm (M)
• 2.4 mm (F)
• GPC-3.5 (M)
• GPC-3.5 (F)
• SMA (M)
• SMA (F)
• N-Conn (M)
• N-Conn (F)
• N-Conn (75) (M)
• N-Conn (75) (F)
• GPC-7
• 7/16 (M)
• 7/16 (F)
• TNC (M)
• TNC (F)
• User-Defined1 (M) through User-Defined32 (M)
• User-Defined1 (F) through User-Defined32 (F)
Test Port 1 Connector Standard Info Button
Select displays the Standard Info dialog box for the selected connector and calibration method that displays the connector calibration coefficients. The dialog box contents depends on the connector selected above and on the Cal Method selected.
Select BB Load for Test Port 1
Select BB Load number for Test Port 1:
• Load 1
• Load 2
Select Load Type for Test Port 1
Select the load type for Test Port 1:
• Broadband Load
• Sliding Load. If Sliding Load is selected:
• A message appears in the “Still requires broadband loads below sliding load breakpoint frequency.”
• A Sliding Load button appears on the PORT 1 REFLECTIVE DEVICES menu.
Test Port 2 Area
Use the check box to select Test Port 2. If the check box is not selected, all Test Port 2 fields and controls are unavailable. If selected, the following controls are available:
DUT Connector Type Field:
Select the DUT Connector Type from a drop-down menu list with the same options as in Test Port 1 above.
Test Port 1 Connector Standard Info Button
Select displays the Standard Info dialog box for the selected connector and calibration method that displays the connector calibration coefficients. The dialog box contents depends on the connector selected above and on the Cal Method selected.
Select BB Load for Test Port 2
Select BB Load number for Test Port 2:
• Load 1
• Load 2
Select Load Type for Test Port 2
Select the load type for Test Port 2:
• Broadband Load
• Sliding Load. If Sliding Load is selected:
• A message appears in the “Still requires broadband loads below sliding load breakpoint frequency.”
• A Sliding Load button appears on the PORT 2 REFLECTIVE DEVICES menu.
OK / Cancel
Click OK to accept the changes and return to the CAL SETUP menu.
Click Cancel to abandon any changes and return to the CAL SETUP menu.
ONE-PORT CAL SETUP (SSLT, COAXIAL) Dialog Box - 2-Port VNAs
• MAIN | Calibration | CALIBRATION | Calibrate | CALIBRATE | Manual Cal | MANUAL CAL | 1-Port Cal | ONE-PORT CAL | Modify Cal Setup | CAL SETUP | Edit Cal Params | ONE-PORT CAL SETUP (SSLT, COAXIAL) Dialog Box
ONE-PORT CAL SETUP (SSLT, COAXIAL) Dialog Box - 2-Port VNAs
Reference Impedance
Input the reference impedance.
• Input field defaulted to 50 Ohms.
• Any numerical value accepted although input values <0.01 Ohms are converted to 0.01 Ohms.
Test Port 1
At least one test port (Test Port 1 or Test Port 2) must be selected. Both test ports may be selected.
Use the check box to select Test Port 1. If the check box is not selected, all Test Port 1 fields and controls are unavailable. If selected, the following controls are available:
Test Port 1 DUT Connector Type Field
Select the DUT Connector Type from a drop-down menu list with options of:
• 0.8 mm (M)
• 0.8 mm (F)
• W1-Conn (M)
• W1-Conn (F)
• User-Defined1 (M) through User-Defined32 (M)
• User-Defined1 (F) through User-Defined32 (F)
Test Port 1 Connector Standard Info Button
Select displays the Standard Info dialog box for the selected connector and calibration method that displays the connector calibration coefficients. The dialog box contents depends on the selected connector and Cal Method selected.
Select BB Load for Test Port 1
Select BB Load number for Test Port 1:
• Load 1
• Load 2
Select Load Type for Test Port 1
Select the load type for Test Port 1:
• Broadband Load
• Sliding Load. If Sliding Load is selected:
• A message appears in the “Still requires broadband loads below sliding load breakpoint frequency.”
• A Sliding Load button appears on the PORT 1 REFLECTIVE DEVICES menu.
Test Port 2 Area
Use the check box to select Test Port 2. If the check box is not selected, all Test Port 2 fields and controls are unavailable. If selected, the following controls are available:
Test Port 2 DUT Connector Type Field:
Select the DUT Connector Type from a drop-down menu list with the same options as in Test Port 1 above.
Test Port 1 Connector Standard Info Button
Select displays the Standard Info dialog box for the selected connector and calibration method that displays the connector calibration coefficients. The dialog box contents depends on the connector selected above and on the Cal Method selected.
Select BB Load for Test Port 2
Select BB Load number for Test Port 2:
• Load 1
• Load 2
Select Load Type for Test Port 2
Select the load type for Test Port 2:
• Broadband Load
• Sliding Load. If Sliding Load is selected:
• A message appears in the “Still requires broadband loads below sliding load breakpoint frequency.”
• A Sliding Load button appears on the PORT 2 REFLECTIVE DEVICES menu.
OK / Cancel
Click OK to accept the changes and return to the CAL SETUP menu.
Click Cancel to abandon any changes and return to the CAL SETUP menu.
ONE-PORT CAL SETUP (SSST, COAXIAL) Dialog Box - 2-Port VNAs
• MAIN | Calibration | CALIBRATION | Calibrate | CALIBRATE | Manual Cal | MANUAL CAL | 1-Port Cal | ONE-PORT CAL(S) | Modify Cal Setup | CAL SETUP | Edit Cal Params | ONE-PORT CAL SETUP (SSST, COAXIAL) Dialog Box
ONE-PORT CAL SETUP (SSST, COAXIAL) Dialog Box - 2-Port VNAs
Reference Impedance
Input the reference impedance.
• Input field defaulted to 50 Ohms.
• Any numerical value accepted although input values <0.01 Ohms are converted to 0.01 Ohms.
Test Port 1
At least one test port (Test Port 1 or Test Port 2) must be selected. Both test ports may be selected.
Use the check box to select Test Port 1. If the check box is not selected, all Test Port 1 fields and controls are unavailable. If selected, the following controls are available:
Test Port 1 DUT Connector Type
Select the DUT Connector Type from a drop-down menu list with options of:
• 0.8 mm (M)
• 0.8 mm (F)
• W1-Conn (M)
• W1-Conn (F)
• TNC (F)
• User-Defined1 (M) through User-Defined32 (M)
• User-Defined1 (F) through User-Defined32 (F)
Test Port 1 Connector Standard Info Button
Select displays the Standard Info dialog box for the selected connector and calibration method that displays the connector calibration coefficients. The dialog box contents depends on the connector selected above and on the Cal Method selected.
Test Port 2 Area
Use the check box to select Test Port 2. If the check box is not selected, all Test Port 2 fields and controls are unavailable. If selected, the following controls are available:
Test Port 2 DUT Connector Type Field:
Select the DUT Connector Type from a drop-down menu list with the same options as in Test Port 1 above.
Test Port 1 Connector Standard Info Button
Select displays the Standard Info dialog box for the selected connector and calibration method that displays the connector calibration coefficients. The dialog box contents depends on the connector selected above and on the Cal Method selected.
OK / Cancel
Click OK to accept the changes and return to the CAL SETUP menu.
Click Cancel to abandon any changes and return to the CAL SETUP menu.
Summary of 1-Port Calibration Setup Dialog Boxes
The table below summarizes the available fields in other one-port calibration setup dialog boxes. To view each dialog box, set the CAL METHOD and LINE TYPE menus to the appropriate settings, and then select the Edit Cal Params button. All dialog boxes are named “One Port Cal Setup (Cal Method, Line Type)”.
Test Port 1 and Test Port 2 controls are the same. Port must be selected to enable controls.
Test Port DUT Connector: For each selected test port, select one of the following connectors: 0.8 mm‑Conn (M), 0.8 mm-Conn (F), W1-Conn (M), W1-Conn (F), User-Defined1 (M) through User-Defined32 (M), User-Defined1 (F) through User-Defined32 (F)
Test Port Connector Standard Info Button: For each DUT port connector, displays the info dialog box for the selected connector.
Test Port 1 and Test Port 2 controls are the same. Port must be selected to enable controls.
Test Port DUT Connector: For each selected test port, select one of the following connectors: 0.8 mm‑Conn (M), 0.8 mm-Conn (F), W1-Conn (M), W1-Conn (F), User-Defined1 (M) through User-Defined32 (M), User-Defined1 (F) through User-Defined32 (F)
Test Port Connector Standard Info Button: For each DUT port connector, displays the info dialog box for the selected connector.
