The Max, Min, Peak, and Target buttons form a four (4) button selection group where the selection of any one button de-selects the other three (3) buttons.

Select sets marker search to Maximum values and de-selects Min, Peak, and Target.

Select sets marker search to Minimum values and de-selects Max, Peak, and Target.

Select sets marker search to Peak values, de-selects Max, Min, and Target, and then displays the PEAK menu.

Select sets marker search to Target values, de-selects Max, Min, and Peak, and then displays the TARGET menu.

Select toggles marker tracking off and on.

Select displays the ADVANCED SEARCH menu.



The Search Peak, Search Left, and the Search Right buttons form a button selection group where selection of any one button de-selects the other two (2) buttons.

Select moves the active marker to the peak with the highest absolute value that matches the selected Peak Excursion, Threshold, and Polarity values.

Select moves the active marker to the target that is nearest on its left to the peak value that matches the selected Peak Excursion, Threshold, and Polarity values.

Select moves the active marker to the target that is nearest on its right to the peak value that matches the selected Peak Excursion, Threshold, and Polarity values.

Select displays the Peak Excursion field toolbar and allows the user to enter the peak excursion value in dB, dBm, or Units (U) depending on instrument settings.



Select displays the Threshold field toolbar and allows the user to enter the peak threshold value in dB, dBm, Index, or Units (U) depending on instrument settings.

The Positive, Negative, and Both buttons form a button selection group where the selection of any one button de-selects the other two (2) buttons.

Sets the peak search object polarity to positive.

Sets the peak search object polarity to negative.

Sets the peak search object polarity to either positive or negative.



The Search Target, Search Left, and the Search Right buttons form a button selection group where selection of any one button de-selects the other two (2) buttons.

Select moves the active marker to the marker that matches the target value and polarity.

Select moves the active marker to the marker that is nearest on its left that matches the target value and polarity.

Select moves the active marker to the marker that is nearest on its right that matches the target value and polarity.

Select displays the Target Value field toolbar and allows the user to enter the target value in dB, dBm, Index, or Units (U) depending on instrument settings.



The Positive, Negative, and Both buttons form a button selection group where the selection of any one button de-selects the other two (2) buttons.

Sets the target transition to search for a positive transition.

Sets the target transition to search for a negative transition.

Sets the target transition to search for either a positive or negative transition.



Select displays the Multi Peak (Marker) menu.

Select displays the Multi Target (Marker) menu.

Select displays the Search Range (Marker) menu.

Select displays the Bandwidth (Marker) menu.

Select displays the Notch (Marker) menu.

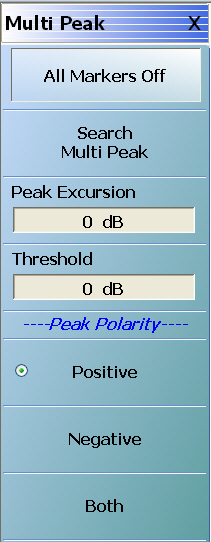

Select turns all markers off.

Select starts the defined multi peak marker search.

Select displays the Peak Excursion (Multi Peak) toolbar and allows entry of the peak excursion value in dB, dBm, Index, or Units (U) depending on instrument settings.

Select displays the Threshold field toolbar and allows the user to enter the peak excursion value in dB, dBm, Degrees, Index, or Units (U) depending on instrument settings.

The Positive, Negative, and Both buttons form a button selection group where the selection of any one button de-selects the other two (2) buttons.

Sets the peak search object polarity to positive.

Sets the peak search object polarity to negative.

Sets the peak search object polarity to either positive or negative.





Select turns all markers off.

Select starts the defined multi peak marker search with search units in dB, dBm, Degrees, or Units depending on the instrument settings.



The Positive, Negative, and Both buttons form a button selection group where the selection of any one button de-selects the other two (2) buttons.

Sets the target transition to search for a positive transition.

Sets the target transition to search for a negative transition.

Sets the target transition to search for either a positive or negative transition.



Select toggles the search range off and on.

The marker search range units can vary depending on the settings in the SWEEP TYPES menu and in the DOMAIN menu. The button descriptions below and their related field toolbars reflect a marker units setting of frequency in Hertz. Alternatively, marker units can be:





Only one of the following Start Range button/toolbar pairs appears depending on the instrument settings.

Select displays the Start Range (dBm) field toolbar and allows entry of a starting search point in units of dBm.

Select displays the Start Range (Distance) field toolbar and allows entry of a starting search point in Distance units.

Select displays the Start Range (Frequency) field toolbar and allows entry of a starting search point units of Hertz.

Select displays the Start Range (Number) field toolbar and allows entry of a starting search point of Index Number.

Select displays the Start Range (Time) field toolbar and allows entry of a starting search point in units of Time.





Only one of the following Stop Range button/toolbar pairs appears depending on the instrument settings.

Select displays the Stop Range (dBm) field toolbar and allows entry of a stop search point in units of dBm.

Select displays the Stop Range (Distance) field toolbar and allows entry of a stop search point units of Distance.

Select displays the Stop Range (Frequency) field toolbar and allows entry of stop search point in units of Hertz.

Select displays the Stop Range (Number) field toolbar and allows entry of a stop search point as an Index Number.

Select displays the Stop Range (Time) field toolbar and allows entry of a stop search point in units of Time.

Select toggles the Apply to All Traces between off and on.

Select toggles the bandwidth marker search off and on.

Select displays the Bandwidth Loss Value field toolbar and allows entry of a loss value in dB (shown below), dBm, or Units (U).

Select toggles whether the shape factor will be included in the marker search (Yes) or not included in the search (No).

Select displays the High (Relative to Loss) field toolbar and allows entry of a high loss value in dB. Depending on instrument settings, this search function can be in units of dB, dBm (not shown), or Units.

Select displays the Low (Relative to Loss) field toolbar and allows entry of a low loss value in dB. Depending on instrument settings, this search function can be in units of dB, dBm (not shown), or Units.

Select toggles the bandwidth marker search off and on.

Select displays the Notch Loss Value field toolbar and allows entry of a loss value in dB, Degrees, or Units.

Select toggles whether the notch factor is or is not included in the search.

Select displays the High (Relative to Loss) (Notch) field toolbar and allows entry of a high loss value in dB, dBm (not shown), Degrees, or Units.

Select displays the Low (Relative to Loss) (Notch) field toolbar and allows entry of a high loss value in dB, dBm (not shown), Degrees, or Units.
