Delay Profile Freq Response Vertical Range Menu

Custom

Key Sequence:
 Meas Selection > Modulation Analysis > Meas Setup > Delay Profile > More > Freq Response Vertical Range

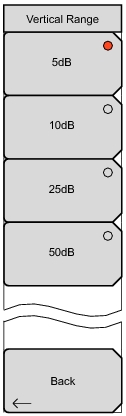

Modulation Analysis Delay Profile Freq Response Vertical Range Menu

Press one of these submenu keys to set the y‑axis scale for the Frequency Response graph.     5dB     10dB     25dB     50dB           Back Press this submenu key to return to the “Modulation Delay Profile Configuration Menu”.
