SCPI commands can be sent to the Spectrum Master though any Virtual Instrument Software Architecture (VISA) controller. VISA is a commonly used API in the Test and Measurement industry for communicating with instruments from a PC. The physical connection between the PC and the Spectrum Master can be Ethernet or USB. NI-VISA is the National Instruments implementation of the VISA I/O standard. Information and downloads are available at http://www.ni.com/visa/.
The following example describes the verification that a VISA controller can see the Spectrum Master.
|
1.
|
On the PC, run VISA Interactive Control and double-click on the Spectrum Master.
|
 |
|
2.
|
 |
|
3.
|

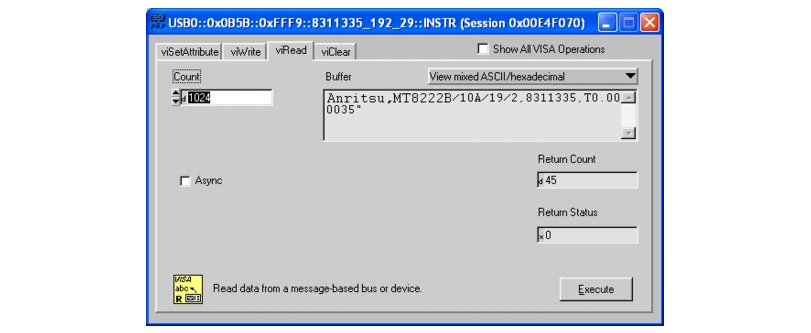

Select the viRead tab and click the Execute button. If the PC is connected to the MS272xC the command returns the following information from the Buffer: manufacturer name (“Anritsu”), model number/options, serial number, and firmware package number..
|
 |
