Modulation Measurements

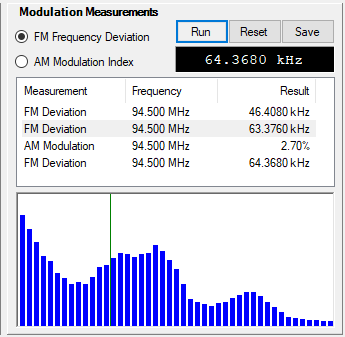

The AM/FM Measurements – Modulation Measurements section provides the menu shown in Figure: Modulation Measurements.
Modulation Measurements
The Modulation Measurements section is described in Table: Modulation Measurements.
Modulation Measurements
Icon
Description
FM Deviation
Provides a FM Deviation.
AM Modulation Index
Provides AM Modulation Index.
Run
Run the measurement selected.
Reset
Reset the measurement result display.
Save
Save the measurement result display.
Measurement Readout

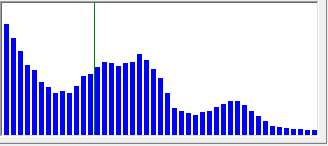

Displays the marker frequency readout from the measurement graph display as shown below.
