Instrument Front Panel
The Field Master Pro uses a touch screen for data input. The menus can vary depending on the current measurement configuration, installed options, and selected instrument function.

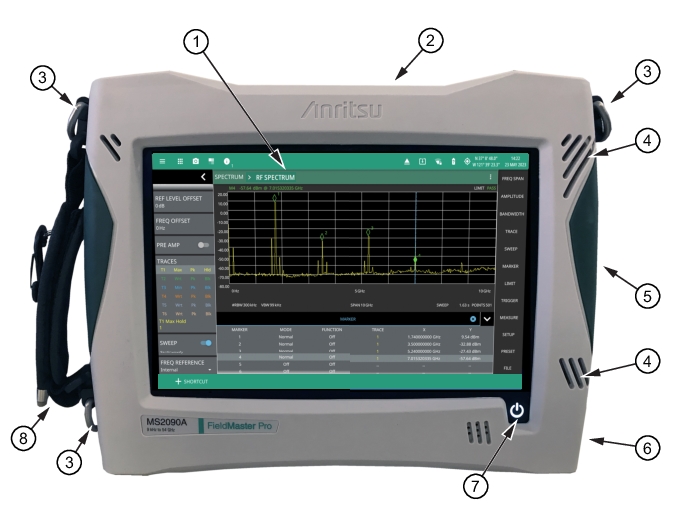

Front Panel Overview
1. LCD Touch Screen Display
3. Shoulder Strap D-Ring Mount
4. Fan Ventilation Ports
6. Battery Cover (see Replacing the Battery)
7. Power LED/Button and Battery Charge LED (see Turning On the MS2090A Field Master Pro)
8. Handle and Stylus
