2. Select DIAGNOSTICS menu to access the diagnostics options of the instrument. See Figure: Diagnostics Menu.
Diagnostics Menu
-
BATTERY
Displays the list of battery information. Refer to Battery section.
EVENT LOG
Saves log files in a USB memory device. Refer to Event Log section.
SELF TEST
Displays the list of self test results. Refer to Self Test section.
SERVICE
Enables service mode. Refer to Service Mode section.
Battery
This diagnostic option displays the information of the MS2090A battery consisting of BATTERY INFORMATION and ADVANCED sections.
The battery information consists of the following:
• Time To Empty:
• Relative Charge:
• Voltage:
• Current:
The relative charge indicates the charge level that the battery is capable of storing. The maximum charge shows the relative capacity of the battery compared to the design capacity. Advanced information can be expanded by selecting ADVANCED.

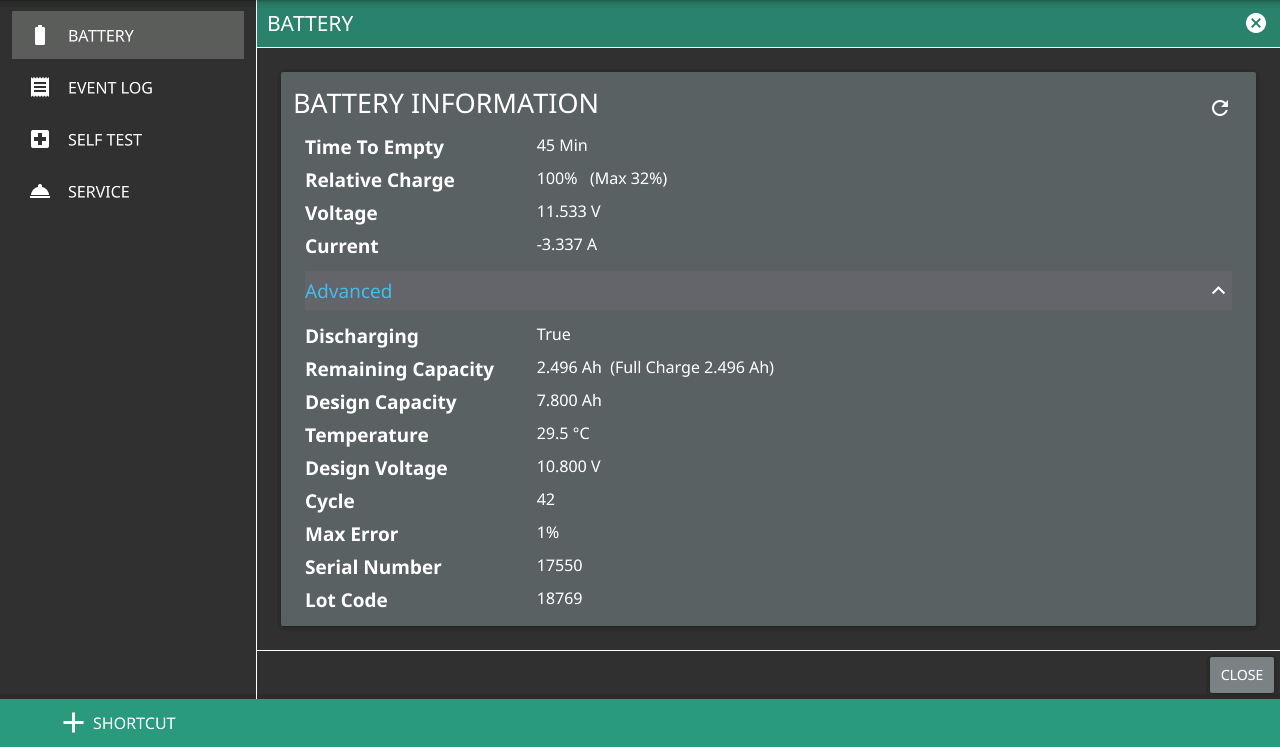

Battery Information
Event Log
The event log allows you to save the instrument notifications that are not displayed in the title bar. Select the SAVE button to copy the event log file into a USB memory device. This event log file is a binary file which is used by the customer service for troubleshooting purposes.

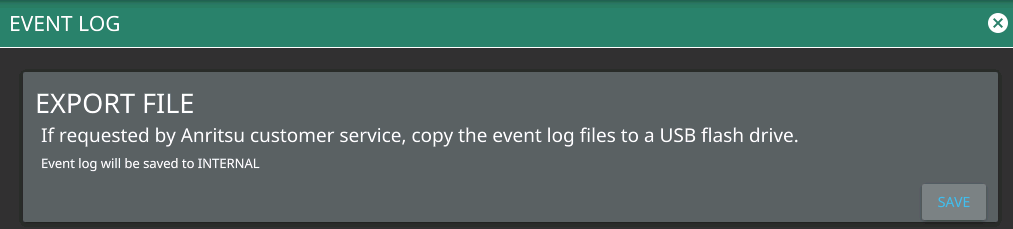

Event Log
Self Test
Self test is run when the self test feature is accessed. Basic system results are shown initially. The individual test result can be displayed with test data and a pass/fail status by selecting the desired system or application. The self test results can be saved to a file for future reference. Refer to Instrument Notifications for more information.

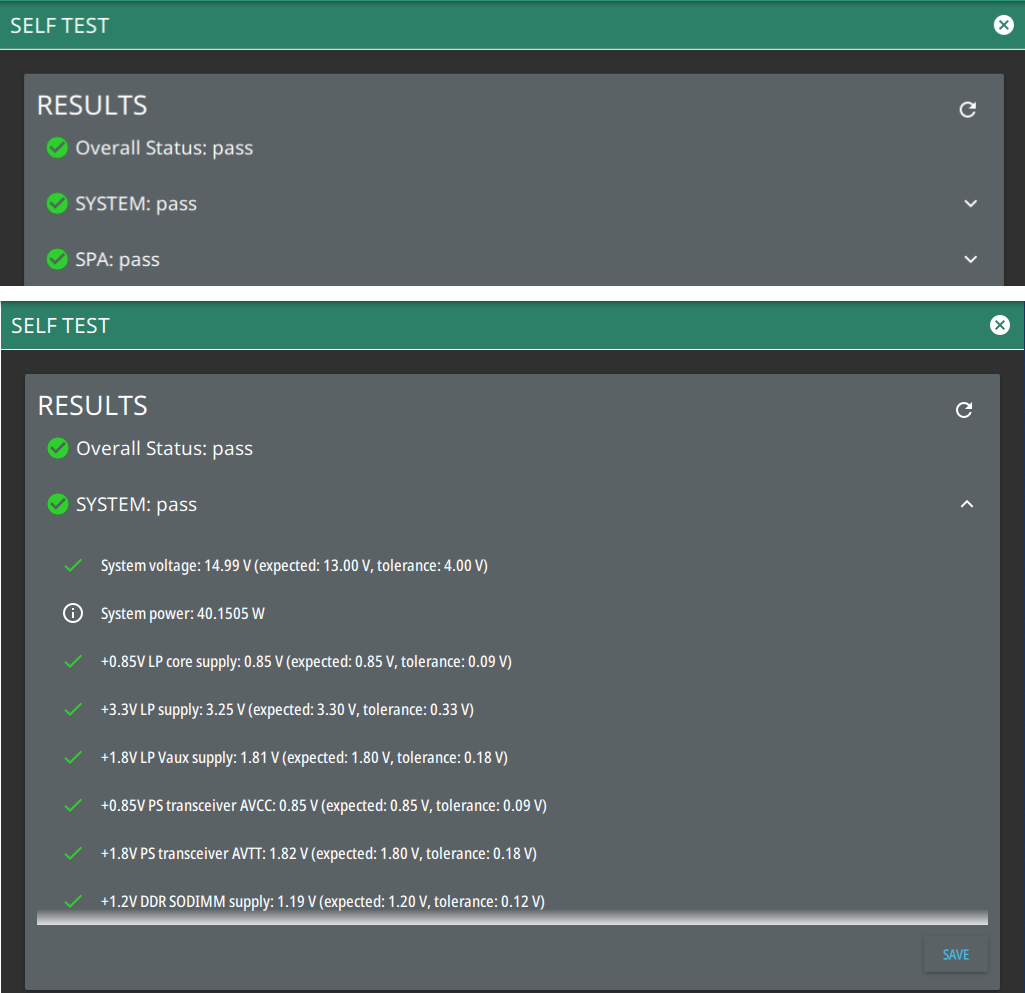

Self Test - SPA

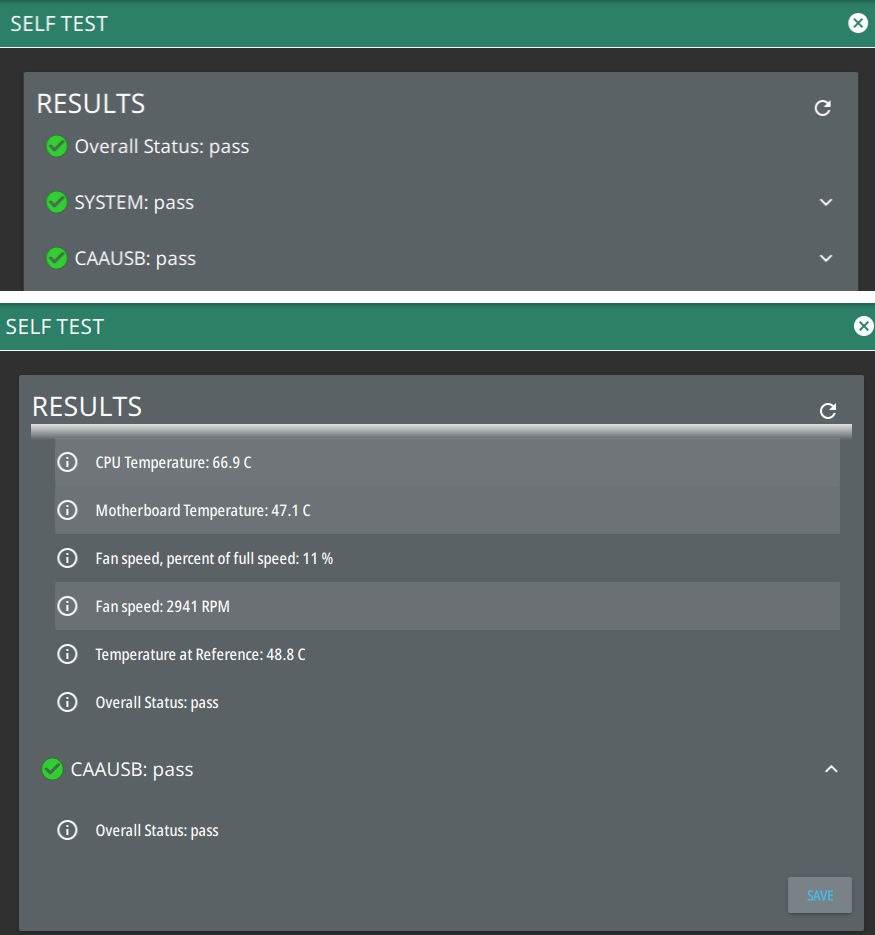

Self Test - CAAUSB

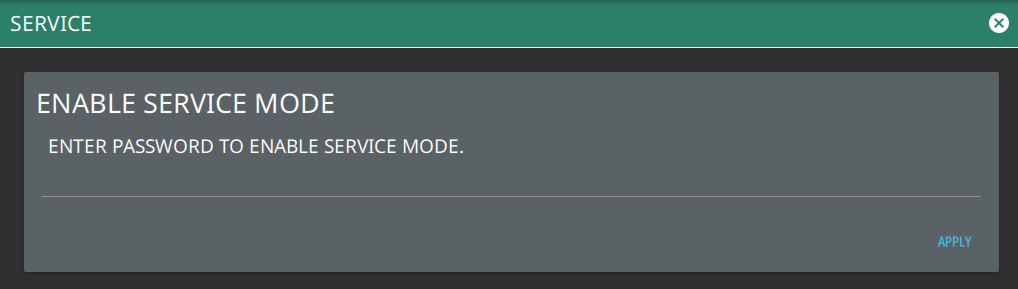

Service Mode
The service mode is for Anritsu customer service use only.
