Selecting the Analyzer
The instrument analyzers are selected from the 9-dot icon or the current measurement icon. To select an analyzer, press the 9-dot icon in the title bar or the current measurement icon to display the available analyzers, illustrated in Figure: Example Analyzers. Simply touch the desired icon to load the new analyzer. The analyzers available for selection depend on the options that are installed and activated on your instrument. Some measurements and views are accessed via other measurement setup menus.

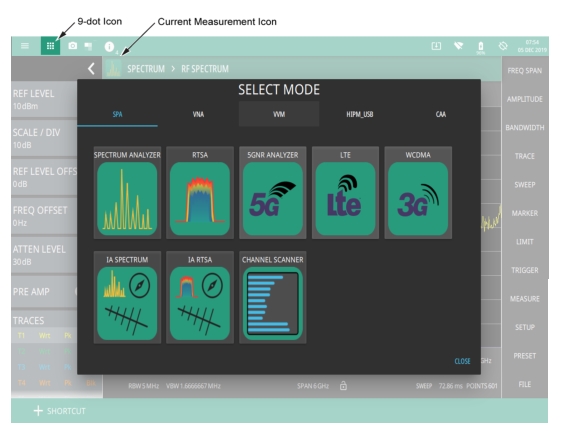

Example Analyzers
GUI Overview
Channel Scanner offers three different types of display views; Bar Chart, Strip Chart and Mapping views, with bar chart being the default view. Press ADD CHANNELS button located in the center of the display to add one or up to 60 channels. Refer to MEASURE Menu to get a detailed overview on the display views.

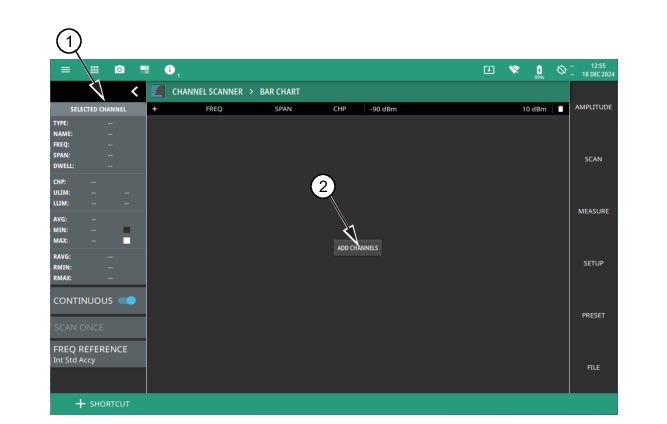

Channel Scanner Bar Chart View
1. Status Panel provides a quick access to common settings used for power meter measurements. See Status Panel (Bar Chart).
2. Press ADD CHANNELS to add the desired number of channels and set custom measurements parameters. Refer to SETUP Menu for detailed information.
