Processing Large Files
The large data set file is reduced using the Time Resolution slider as shown the power vs. time graph in Figure: Time Resolution Change Displayed. The Process Time of each graph is reduced when the time resolution is increased.

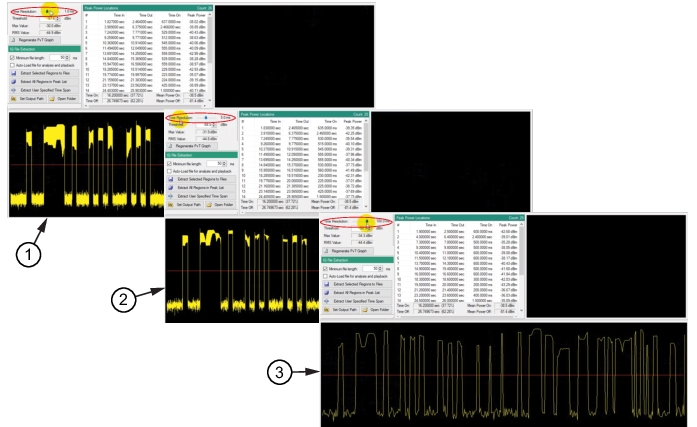

Time Resolution Change Displayed
1. Time Resolution set to 1 ms, process time is 9.4 sec.
2. Time Resolution set to 5 ms, process time is 2.5 sec.
3. Time Resolution set to 100 ms, process time is 31 ms.
