5G Frame Analysis Menu
The 5G Frame Analysis menu provides tools to:
• Capture a streamed data set using a remote Anritsu remote monitor and perform 5G analysis.
• Load stored signals from an Anritsu Spectrum analyzer and perform 5G analysis.
The Synchronization Signal Block (SSB) can then be located and the parameters loaded back into the spectrum analyzer for demodulation. The 5G Frame Analysis menu is shown in Figure: 5G Frame Analysis Menu.

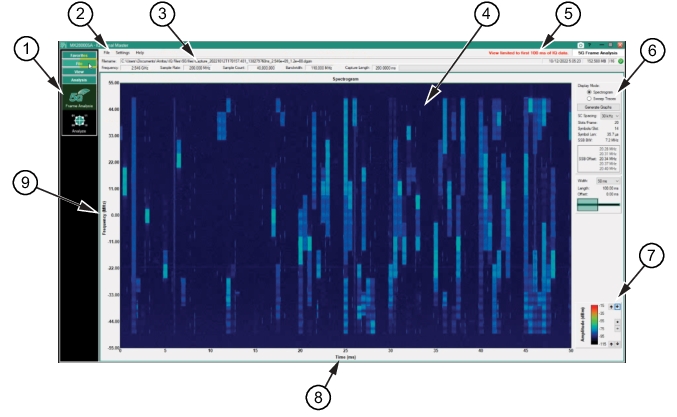

5G Frame Analysis Menu
1. 5G Frame Analysis Button
2. Menu Bar
3. Data File
4. Analysis Window
5. View limited to first 100 ms of IQ data. (The signals analyzed capture length is 200 ms as indicated in the parameters window, but the 5G frame analysis view is limited to 100 ms).
6. 5G Frame Analysis Tools Window
7. Spectrogram Display Controls
8. Horizontal Axis - Time (ms)
9. Vertical Axis - Frequency (MHz)
