Phase Offset Menu
The Phase Offset menu is shown in Figure: PHASE OFFSET Menu. The phase offset function is available in CW operating mode only. When active, the MG362x1A RF output will be phase shifted by the specified amount displayed in the phase offset parameter. The phase offset range is -360° to +360° with a resolution of 0.1°. When the phase offset is on, the phase offset value is displayed in the CW menu. To zero the phase offset display from the phase offset menu, press Zero Display.

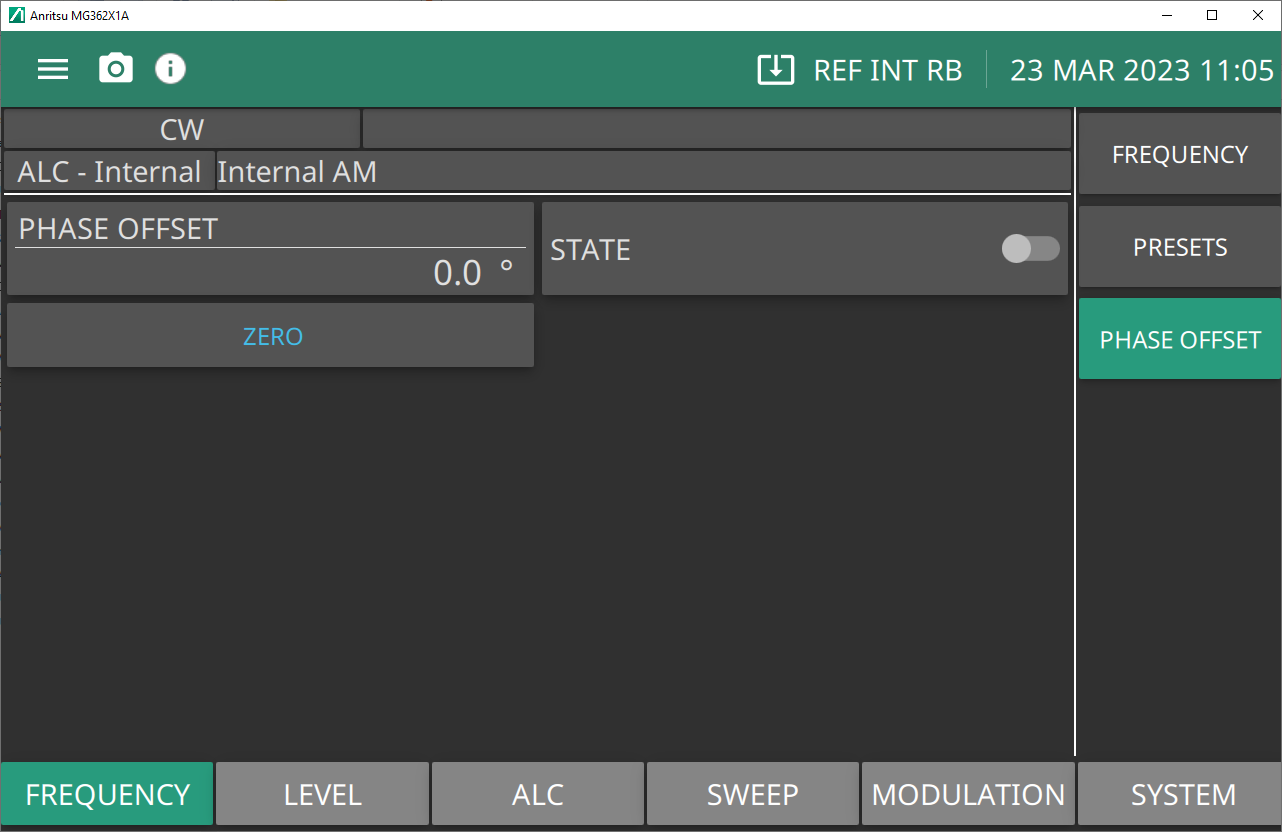

PHASE OFFSET Menu
PHASE OFFSET
Set the phase offset range from –360 to 360°.
STATE
Set the phase offset to on or off.
ZERO
Set the phase offset to zero (0°).
CW RAMP Menu
CW Ramp is available with Option 6. The CW ramp provides a repetitive 0V to 10V ramp output to the rear panel HORIZ OUT BNC connector and AUX I/O connector, pin 1. While the CW ramp is on, the message CW Ramp appears on the frequency title bar.

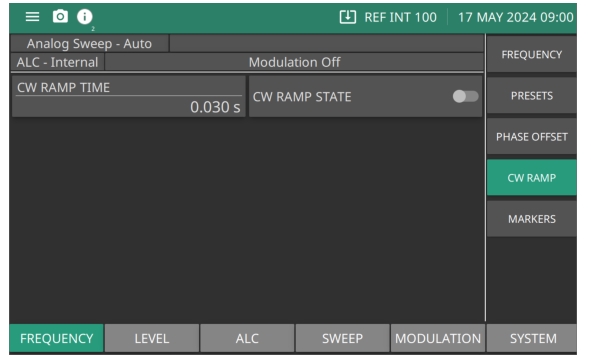

CW RAMP Menu
CW RAMP TIME
Range: Set from 0.03 seconds to 99 seconds.
CW RAMP STATE
Switch to the on position to activate the CW Ramp.
