10 MHz Calibration With Option 6

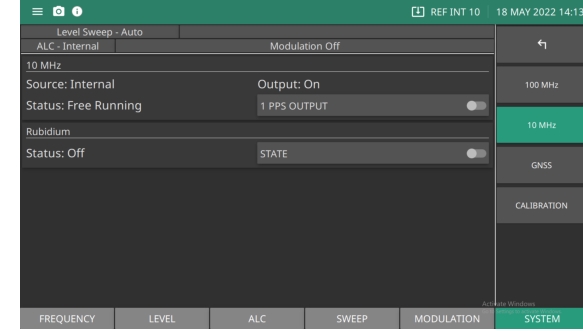

The 10 MHz menu is shown in Figure: 10 MHz Menu. Option 3 and Option 6, allows GNSS to calibrate the 10MHz frequency reference. The menu display depends on the options ordered and external reference inputs. On-site frequency calibration is accomplished by connecting the Rubidium MG362x1A signal generator's GNSS/GPS receiver to an outdoor antenna and locking to he satellite signal. The GNSS/GPS receiver provides a very stable and accurate 1PPS clock for recalibrating the internal time base.
Press SYSTEM | 10 MHz
10 MHz Menu
10 MHz
Source: Internal, Internal 10 MHz set as the source
Output
Displays the 10 MHz 1PPS reference source and status. The 10 MHz 1PPS output to the rear panel BNC is active when the 1 PPS Output button is switched on.
STATUS
Displays the lock status of the 100 MHz source.
Rubidium
Displays the internal Rubidium status as Acquiring, Locked, or Off.
State
Set Rubidium state to on or off
