This chapter provides a brief overview of the Anritsu MG362x1A signal generator real-time operation and to provide a starting point for making basic measurement setups. This chapter describes general instrument operation including setting frequency, power level, modulation, sweep applications, and system configurations.

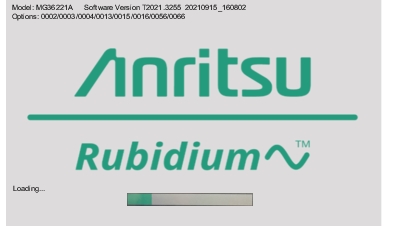

During power-on, the following screen is displayed as shown in Figure: Startup Display Screen The display shows the model number, software version installed, and the options installed. The progress bar displays the system power up and loading sequence status.
