View and Edit a Cable

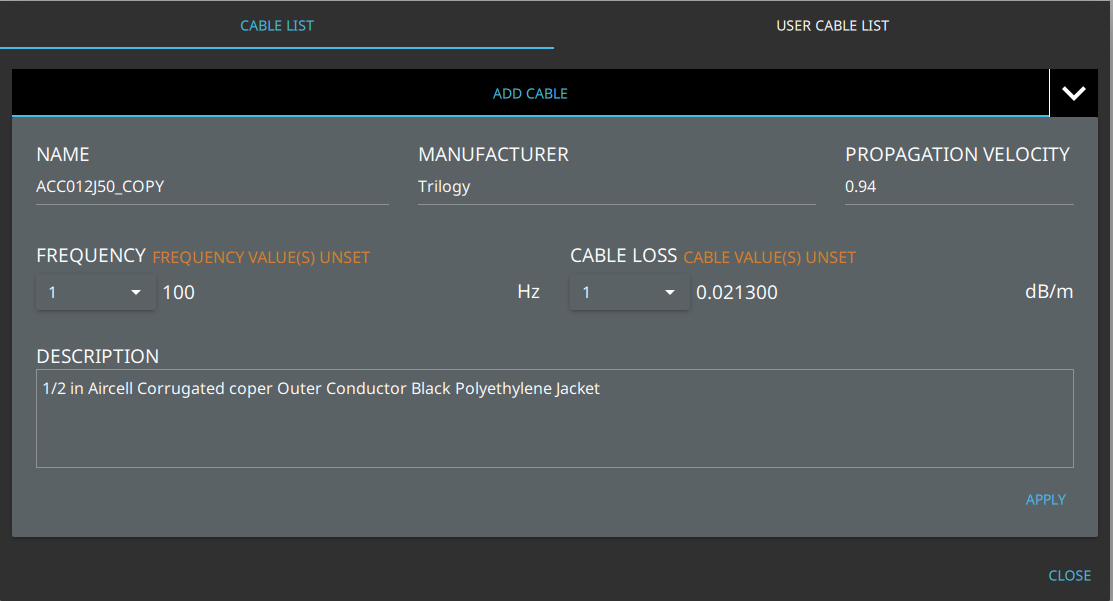

Press the add/edit cable button shown in Figure: Cable List to display the screen in Figure: Add Cable. The cable Name, Manufacturer and the Propagation Velocity, Frequency Value, and Cable Loss is displayed. Click a field and type to edit a field.
Add Cable
View/Edit an Existing Cable’s Parameters
Use this procedure to view or edit an existing cable.
1. Click the Add/Edit Cable Button.
2. Click a field and type the cable details.
3. Use the caret for FREQUENCY and CABLE LOSS to set a value of 1,2 or 3.
4. Use the DESCRIPTION panel to type details of the added cable.
5. Press APPLY.
