System Menu
Press the 3-line icon in the upper left corner to open the Anritsu Remote Tool System menu. The System menu identifies the remote instrument model and serial number as described in Figure: System Menu.

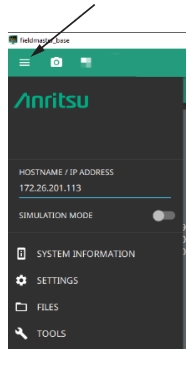

System Menu
-
Press the 3-line icon to open the Anritsu Remote Tool System Menu. The System menu identifies the remote instrument model and serial number.
HOSTNAME/IP ADDRESS
This field is used to specify the IP address or hostname of an instrument that is connected to the network.
When SIMULATION MODE is toggled on, the software will connect locally to provide some UI functionality. Toggle the simulation mode and select the product from the drop-down and click START button to get connected with the local host. Click STOP button to get disconnected.
Note that some of the system menus have limited functionality when the software is connected to the Simulation Mode. Refer to the Anritsu instrument user guide for the System Menu description.
SYSTEM INFORMATION
Displays information about the instrument and software. Refer to System Information.
SETTINGS
Provides access to setting the display color theme and screenshot capture settings. Refer to the Anritsu instrument user guide for the Settings description.
FILES
Opens the Windows file explorer. Refer to Files (File Management).
TOOLS
Opens the Tools Menu.
SYSTEM POWER
Opens a dialog to RESTART or POWER OFF the instrument.

System Information
1. Press the 3-line icon in the upper left corner to open the Anritsu Remote Tool System menu.
2. Select SYSTEM INFORMATION to view the instrument’s options, serial number and software details.
3. Select UPDATE INSTRUMENT REMOTELY and choose the firmware file saved locally on your PC to remotely update the instrument firmware.

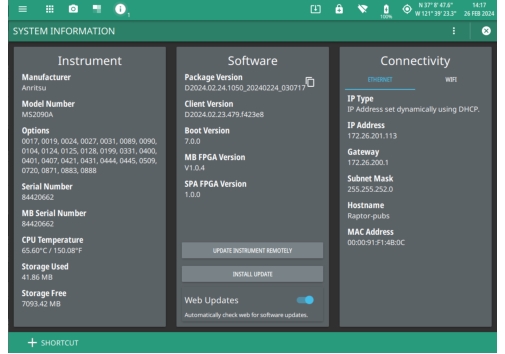

Remote Instrument System Information
Files (File Management)
The PC file system is used for all file operations when connected to either an instrument or to simulation mode. The FILE menu will display the Windows Save As or Recall File dialogs. The FILES system menu will launch Windows Explorer. Note that files cannot be recalled from nor written to a connected instrument. Also, SAVE ON EVENT files will always be saved to the instrument and not the local PC.
1. Press the 3-line icon in the upper left corner to open the Anritsu Remote Tool System menu.
2. Click FILES to access the FILES menu.
Files Menu

File Transfer
File transfer menu enables the capability of saving the instrument files to your local PC. Follow the steps below to save the internal files:
1. Press the 3-line icon in the upper left corner to open the Anritsu Remote Tool System menu.
2. Click FILE TRANSFER to view the list of internally saved files for e.g. screenshots. See Figure: File Transfer Menu.
3. Click the desired file from the list to save it locally on to your computer.
4. To save multiple files, click the multi-select icon on the upper right and select the desired files as shown in the figure below.

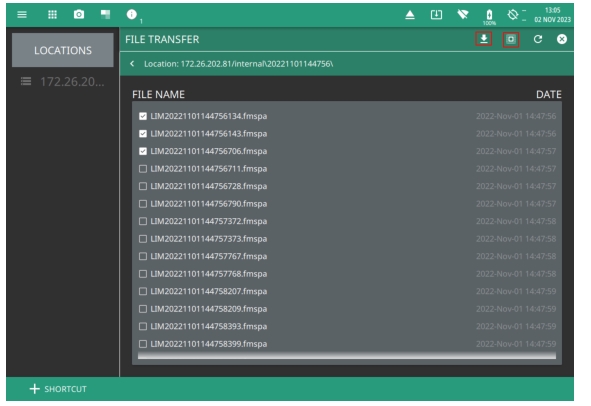

File Transfer Menu
5. Click Download icon to open the Windows File Explorer and choose the desired location to save the files locally to your PC.
Tools Menu
1. Press the 3-line icon in the upper left corner to open the Anritsu Remote Tool System menu.
2. Click TOOLS to access the tools menu, then select the tool menu that you wish to open.
Tools Menu
-
IQ STREAMING
Opens IQ Streaming Tool. Refer to IQ Streaming Tools section of Spectrum Analyzer Measurement Guide (10580-00447).
MAP TOOL
Opens Map Tool. Refer to Map Tool section of Spectrum Analyzer spectrum analyzer measurement guide (10580-00447).
DISCOVERY TOOL
PDF REPORTS
Facilitates report generation in a web browser. Click to open REPORT GENERATOR- PREVIEW window in the browser. You can either print or save a copy of the report in the PDF format.
DISCOVERY TOOL

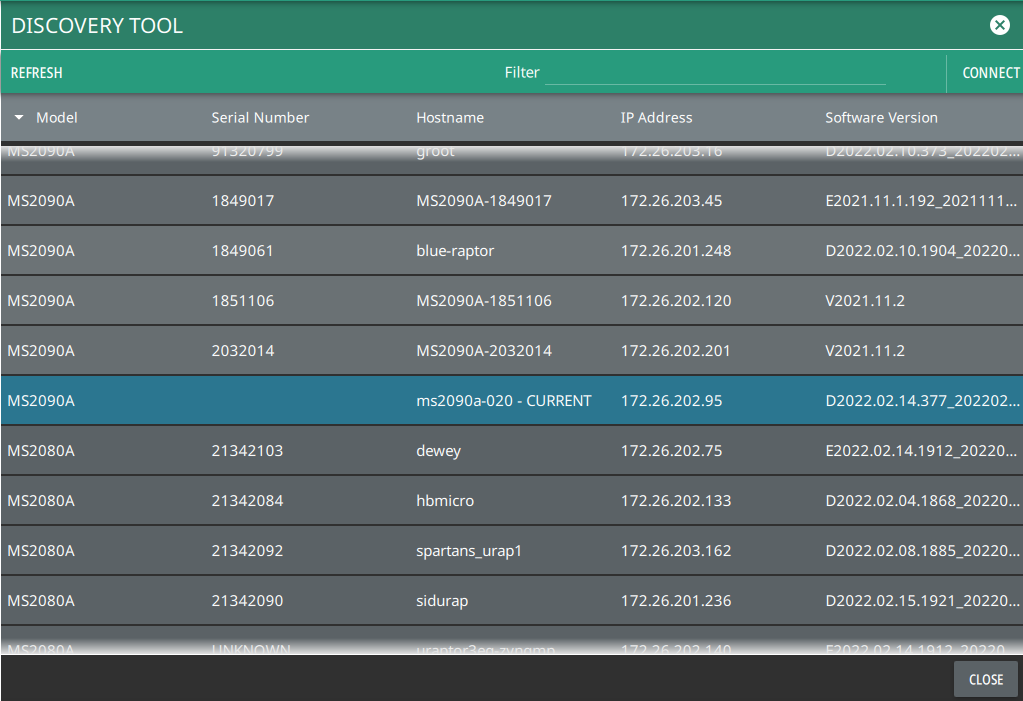

The DISCOVERY TOOL displays all of the compatible units found on the local network. Select an instrument and then click CONNECT.
Discovery Tool
