MX281000A Auto Test and Alignment Help : Hardware and Software Installation : Introduction : Mobile Radio Test Setup

Mobile Radio Test Setup

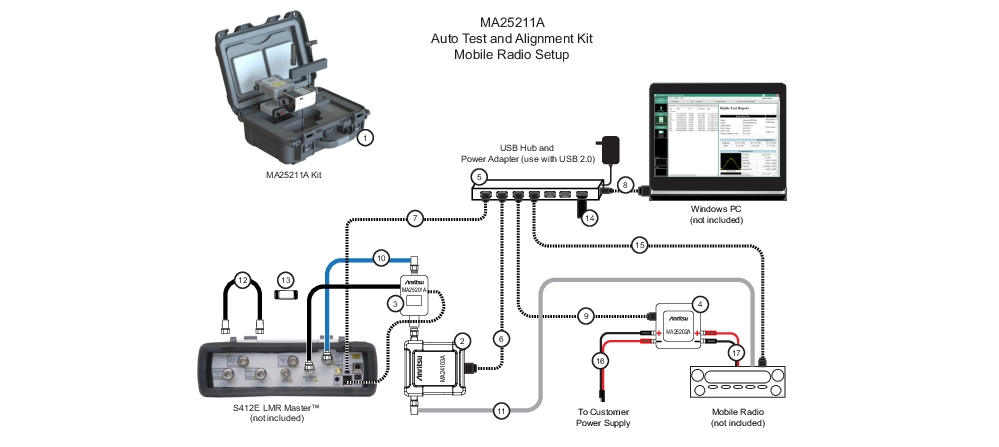

The mobile radio test setup using the MA25211A Kit is shown in Figure: Mobile Radio Test Setup. The portable radio test setup is shown in Figure: Portable Radio Test Setup.
Mobile Radio Test Setup

1. 760-301-R MA25211A Foam-lined Case
2. MA24103A Inline Power Sensor
3. MA25201A High Power Input Protection Module
4. MA25202A Ammeter Module
5. 2000-2157-R 7-Port USB Hub and Power Adapter
6. 2000-2010-R USB-A/Micro-USB, Cable Assembly (6ft) (MA24103A Cable)
7. 3-2000-1498 USB Cable, Type-A to Mini-B (10 ft)
8. 3-806-468 USB 3.0 USB Cable, Type-C to Micro-B (3.33 ft)
9. 3-806-469 USB Cable Type-A to Type-C (6.56 ft)
10. 806-470 Cable Assembly, N(m) to N(m) (right angle) (18 in) (Blue Cable)
11. 806-465-R Test Cable, N(m) (right angle) to N(m) (6.56 ft) (Silver Cable)
12. 806-466-R Test Cable, N(m) to N(m), (20 in)
13. 1091-474-R RF Adapter N(f) to N(f)
14. USB License Key (Not required if Node-Locked license is used)
15. Customer Supplied USB Cable
16. 2000-2168-R SAE Connector to 4 mm Banana Plug (609.6 mm, 24 in)
17. 2000-2169-R SAE Connector/Adapter to 4 mm Banana Plug (635 mm, 25 in)
18. 1030-328-R Filter, Low Pass, DC-270 MHz, 50 Ω (Figure: Portable Radio Test Setup) (not used mobile setup)
19. Customer Supplied Power Cable
(Figure: Portable Radio Test Setup) (not used mobile setup)
20. Customer Supplied RF Adapter
(Figure: Portable Radio Test Setup) (not used mobile setup)
21. 10580-00508 MA25211A Quick Start Guide
