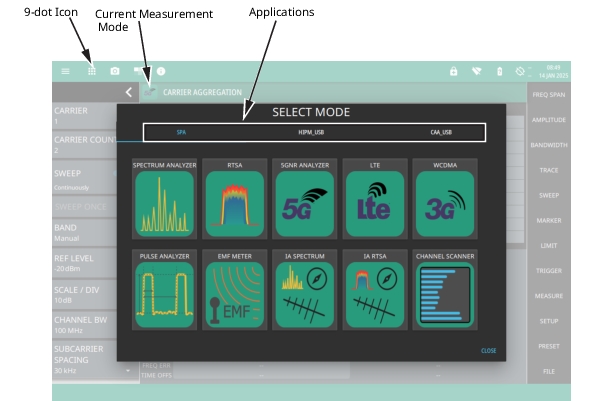

The instrument applications are selected from the 9-dot icon or the current measurement icon. To select an application, press the 9-dot icon in the title bar or the current measurement icon to display the available applications and the corresponding modes, illustrated in Figure: Instrument Applications and Modes. Simply touch the desired icon to load the application or mode. The applications available for selection depend on the options that are installed and activated on your instrument. Some measurement modes and views are accessed via other measurement setup menus.

Note that not all applications/modes are included in all instruments. Refer to your instrument’s technical data sheet.

For detailed information on the selected application’s user interface and setup functions, refer to the relevant measurement guide. See Additional Documentation to find the list of the measurement guides.
