Field Master Pro™ MS2090A User Guide : Upgrading Software Options : Software Update

Software Update
To update your Anritsu instrument software, use a high quality USB memory device with at least 1 GB of free space and FAT32 file system format or update remotely:
1. Insert the USB memory device into your PC or laptop.
2. From a browser, go to your product’s page:
http://www.anritsu.com/en-US/test-measurement/products/ms2090a
3. On the product page, click DOWNLOADS.
4. Select the software update for your product and copy the downloaded software into the USB memory device.
5. Insert the USB memory device into the one of the MS2090A USB ports.
6. Alternatively, open the ARRT software on your PC or laptop, access SYSTEM menu and click SYSTEM INFORMATION.
7. Click UPDATE INSTRUMENY REMOTELY and select the locally saved software to update your instrument. See Figure: System Information.
Installing the Software
1. Start the software update via one of the two ways below (see Figure: Updating the Software):
• Access the upper left System Menu (3-line icon), then press SYSTEM INFORMATION > INSTALL UPDATE.
• Select the software update icon from the Title bar. Refer to Common GUI Controls for list of GUI icons.
2. Select the latest available update from the Available Updates drop-down and press INSTALL.
• A dialog will appear stating Software Update in Progress.
3. When the installation is complete, see Verify the Software Update.

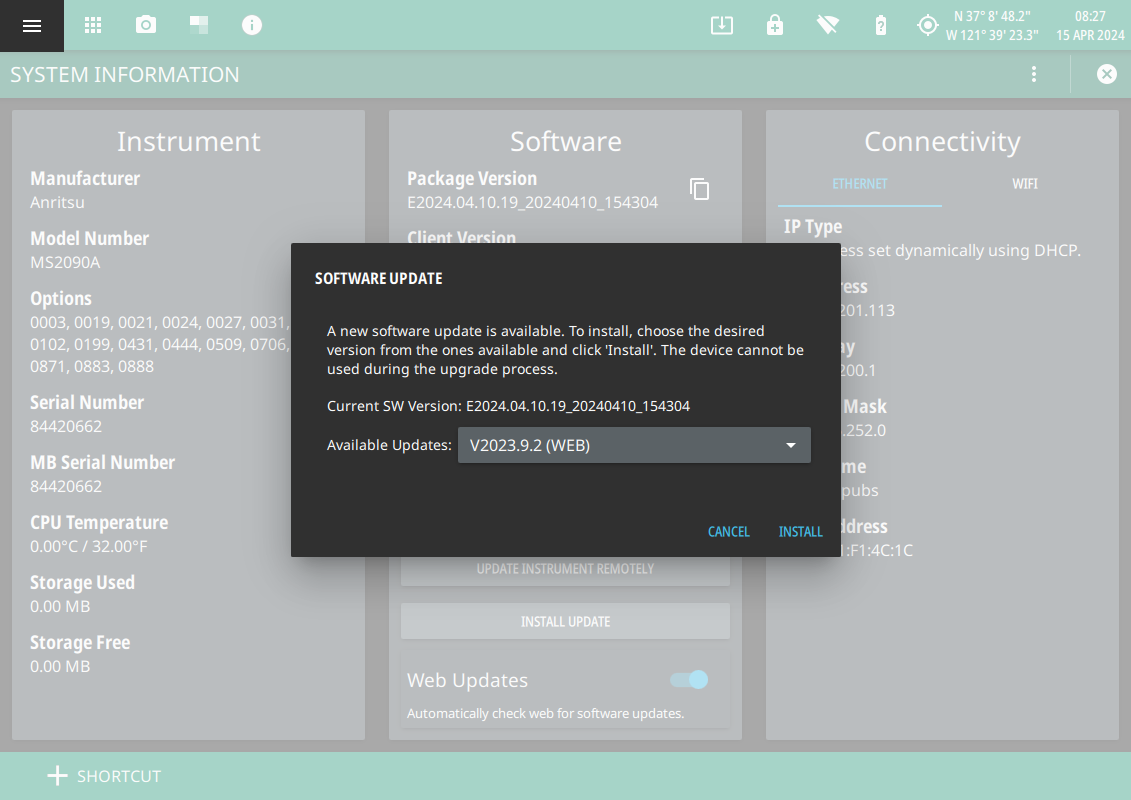

Updating the Software
Verify the Software Update
1. Once the software update is complete, power off the MS2090A.
2. Power on the MS2090A.
3. Select the System menu icon (3-line icon) from the MS2090A to display the System Menu.
4. Select the System Information Menu menu (see Figure: System Information).
5. Verify the software Package Version displayed is the most current version installed.

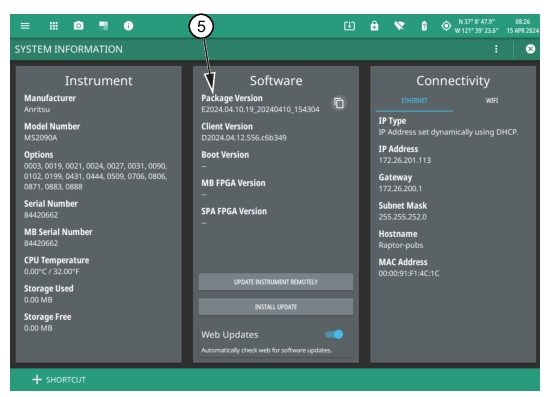

System Information
