Opening Screen File Menu

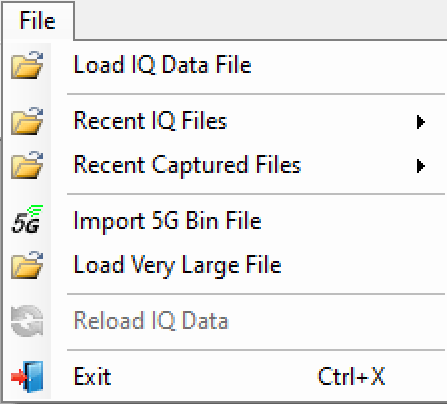

The Opening screen file menu provides the commands as shown in Figure: Browse File Menu. This opening screen menu is intended as a quick access to files and analysis of pre-created user files.
Browse File Menu
-
Load IQ Data File
Opens a browse dialog to find and load an user created IQ file.
Recent IQ Files
Open to display the recent user created IQ files that have been recently used. Basic information is stored and subsequently when the same file is opened again it is very fast. Along with the basic file description, user settings such as markers are also stored in the same place.
Recent Captured Files
Open to display the recently captured IQ files. This command minimizes the need to browse the file folders to search for the recently captured and saved IQ files.
Import 5G Bin File
Open the browse dialog to load a user created 5G data file for analysis. A selected .bin file will automatically open to a .dgzm file.
See 5G Frame Analysis Menu for 5G frame analysis details.
Load Very Large File
Load a user created large file (> 1 GB) See Load Large File Menu for opening and using large data set files.
Reload IQ Data
Reload the most recent viewed file.
Exit:
Exits the program.
