Sync Playback Menu
The Sync Playback menu provides tools to load multiple files, synchronize the data displayed, and view the files at the same time in the same time domain. The signal data displayed should have the same capture bandwidth and center frequency in order to synchronize.

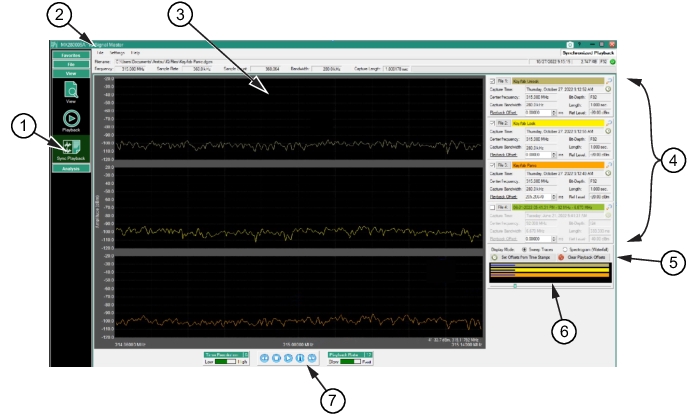

Sync Playback Menu
1. Sync Playback menu
2. Sync Playback Toolbar
3. Data display windows
4. Listed files and parameters for synchronization
5. Display and offset tools (Sweep Traces view shown).
6. Time offset bars
7. Playback controls
Sync Playback Toolbar
The Sync Playback toolbar is shown in Figure: Sync Playback Toolbar.
Sync Playback Toolbar
File Menu
Displays the Sync Playback File menu as shown in Figure: Capture File Menu.
Capture File Menu
-
Load IQ Data File
Browse to find and load an IQ file
Recent IQ Files
Open to display the recent IQ files that have been viewed. Basic information is stored and subsequently when the same file is opened again it is very fast. Along with the basic file description, user settings such as markers are also stored in the same place.
Recent Captured Files
Open to display the recently captured IQ files. This command minimizes the need to browse the file folders to search for the recently captured and saved IQ files.
Trim Files at Playback Offset
Set the active files to the same length and start at the synchronized start time. This function overwrites the active Playback files, trimming the beginning of each file so that the file charts at the set Playback Offset point.
Load File Set
Opens Windows browse dialog.
Save File Set
Save File to a users defined file folder.
Reload IQ Data
Reload the most recent viewed file.
Exit:
Exits the program.
Settings Menu
The Settings menu is the same as described in Settings Menu.
Help Menu
The Help menu is the same as described in Help Menu.
