Use Limit lines to analyze measured trace data against specifications or expectations. Limit lines can be created to compare trace data to your defined limits and indicate a pass or fail condition. The limit line types Single and Segmented.
Single Limit Line: Use single limit lines to set upper and lower limits of a trace display. Set maximum and minimum indicators for the value of displayed data on a per-trace basis. To set single limit lines, see Single Limit Line Mode.
Segmented Limit Line: Use segmented limit lines to analyze trace data split spec considerations. Set maximum and minimum segment lines for the value of displayed data on a per-segment basis. To set segmented limit lines, see Set as Single or Segmented Limit Line.

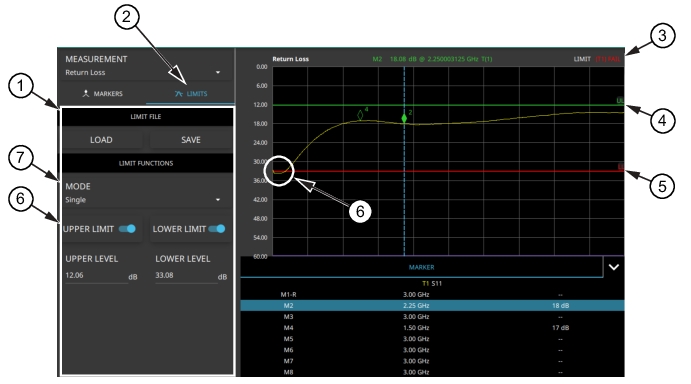

4. (UL) Upper Limit Line - Provides a trace data upper threshold limit.
5. (LL) Lower Limit Line - Provides a trace data lower threshold limit.
6. Limit line trace violation shows a red line
7. Upper and Lower Limit Edit Menu
8. Set Limit mode to Single or Segmented
Set as Single or Segmented Limit Line
Press the MODE menu caret to display single or segmented as shown in Figure: Set Single or Segmented Limit Line Menu. Press Single to set the limit line menu to single mode. Press segmented to set the limit line menu to segmented mode.
