Segmented Limit Line Mode
Use a segmented limit line to make segmented measurements across the trace data. To access the segmented limit line menu:
1. Press LIMITS in the Measurement menu.
2. Set MODE to Segmented as described in Set as Single or Segmented Limit Line.

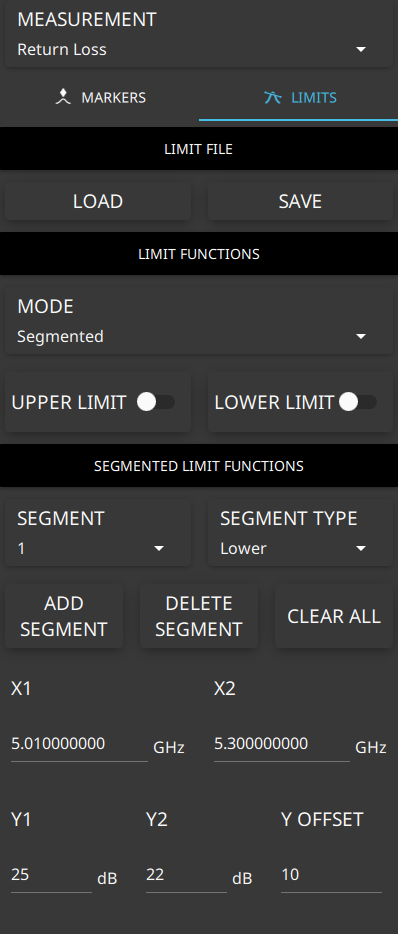

The Segmented limit line menu is shown in Figure: Segmented Limit Line Menu and is described in Segmented Limit Line Menu.
Segmented Limit Line Menu
Segmented Limit Line Menu
The Segmented Limit line menu is described in Table: Segmented Limit Line.
Segmented Limit Line
Opens the Load dialog to the user designated .limcaa file folder.
Save a trace data file into a user designated trace data folder.
Set mode to Single or Segmented Limit Line.
Switch on to activate Upper limit line parameters. Switch off to hide the entire Limit Line. Switch on again will display the current limit line on the display if it was not Cleared.
Switch on to activate Lower limit line parameters. Switch off to hide the entire Limit Line. Switch on again will display the current limit line on the display if it was not Cleared.
Tracks the number of segments active on the display. Segment 1 can be tracked in the “#” column as shown in the LIMITS SEGMENTS Parameters. Press the caret to set a segment to display.
Set as an upper or lower limit segment.
Add a segment to the trace display. Adding a segment will increase the number shown in the SEGMENT menu.
Deletes the segment that is active. The SEGMENT tab will show the segment count reduced when a segment is deleted.
All segments for the trace data displayed are cleared and lost.
Press to display a numeric keypad. Enter a frequency value. Refer to Enter Numeric Values to enter a value using the numeric keypad.
Press to display a numeric keypad. Enter a frequency value. Refer to Enter Numeric Values to enter a value using the numeric keypad.
Press to display a numeric keypad. Enter a power level value. Refer to Enter Numeric Values to enter a value using the numeric keypad.
Press to display a numeric keypad. Enter a power level value. Refer to Enter Numeric Values to enter a value using the numeric keypad.
Press to display a numeric keypad. Enter a power level value. Refer to Enter Numeric Values to enter a value using the numeric keypad.
