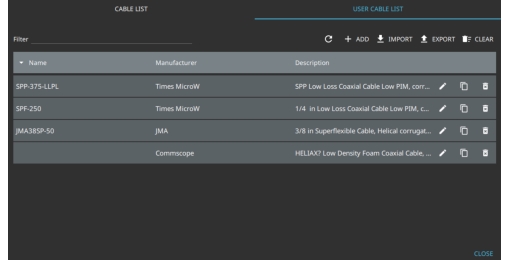

Refresh the cable list.

Type all or part of a name, manufacturer or description and press FILTER to sort the list.

Press to open the cable edit screen. Type to edit the fields and press APPLY to add the cable parameters to the cable list.

Opens the import dialog to a user designated cable folder.

Opens the save dialog to save in a user designated cable folder.

Clears ALL cable entries in the User Cable List.

Press to open the edit cable screen. Point to a field to edit. When finished editing, press RENAME to save the edit. The cable will be added to the list with the edits applied. If the Name was not changed, then the file will be saved as a _Copy.

Press to open the add cable details screen shown in Figure: Add Cable Template. Edit the field and press APPLY to save the changes as a _Copy file in the cable list.

Remove the cable from the cable list.
