REFL. DEVICE(S) Menu - 2-Port VNAs
This menu example is a representative menu based on the following configuration:
• VNA is in 2-port mode
• A 2-port calibration
• A SOLT/SOLR calibration method
• A coaxial line type
• A V (f) Connector
Using a different configuration set can change the appearance of the REFL. DEVICE(S) menu.
Full Name
• REFLECTIVE DEVICE(S) Menu
Previous
• The previous menu can be any of the following manual calibration menus and their associated configuration dialog boxes.
• The REFL. DEVICE(S) Port 1 menu is nearly identical to the typical REFL. DEVICE(S) Port 2 menu.
REFL. DEVICE(S) (REFLECTIVE DEVICES) Menu - 2-Port VNAs - Typical Example

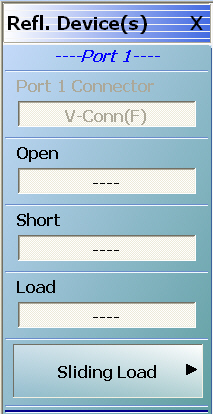

A typical REFL. DEVICE(S) menu.
Each button is a completion task button and marked with a checkmark when the calibration task is complete.
Port 1 Connector
A read only button showing the configured connector for the indicated port.
Open
In general, prepare the indicated connections and components and then select the button. Starts the open calibration procedure for the indicated port. When the calibration task is completed, the button is marked with a checkmark.
Short
Starts the short calibration procedure for the indicated port. When the calibration task is completed, the button is marked with a checkmark.
Load
Starts the load calibration procedure for the indicated port. When the calibration task is completed, the button is marked with a checkmark.
Sliding Load
If present, selecting this button displays the SLIDING LOADS menu which is described in the section below.
SLIDING LOADS Menu - 2-Port VNAs - Typical Example

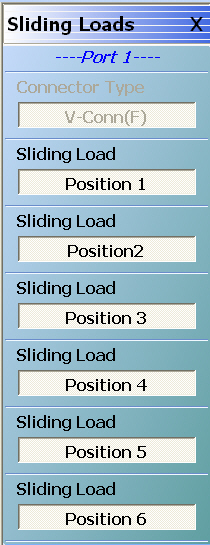

A typical SLIDING LOADS menu.
Each button is a completion task button and marked with a checkmark when the calibration task is complete. The number of buttons appearing on the menu is dependent on the calibration settings.
Connector Type
A read only button showing the configured connector for the indicated port.
Sliding Load (Position 1)
In general, prepare the indicated connections and components and then select the button. Starts the sliding load calibration procedure at position 1 for the indicated port. When the calibration task is completed, the button is marked with a checkmark.
Sliding Load (Position 2)
As above for sliding load calibration procedure at position 2.
Sliding Load (Position 3)
As above for sliding load calibration procedure at position 3.
Sliding Load (Position 4)
As above for sliding load calibration procedure at position 4.
Sliding Load (Position 5)
As above for sliding load calibration procedure at position 5.
Sliding Load (Position 6)
As above for sliding load calibration procedure at position 6.
When all calibration procedures are complete, use the Back button to return to the REFL DEVICE menu.
Each button is a completion task button and marked with a checkmark when the calibration task is complete.
Thru (Port Pair 1-2)
In general, prepare the indicated connections and components and then select the button. Starts the through calibration procedure for the indicated port pair. When the calibration task is completed, the button is marked with a checkmark.
When all calibration procedures are complete, use the Back button to return to the REFL DEVICE menu.
Each button is a completion task button and marked with a checkmark when the calibration task is complete.
Isolation (Port Pair 1-2)
In general, prepare the indicated connections and components and then select the button. Starts the optional isolation calibration procedure for the indicated port pair. When the calibration task is completed, the button is marked with a checkmark.
When all calibration procedures are complete, use the Back button to return to the REFL DEVICE menu.
