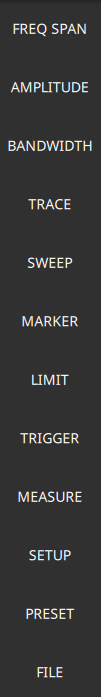

Contains all frequency control settings such as center frequency, start and stop frequency, span, frequency offset, and frequency step. Refer to Setting Frequency Parameters.

Provides access to all amplitude-related settings including reference level, graticule scale, and attenuator/preamp settings. Refer to Setting Amplitude Parameters.

Provides access to resolution and video bandwidth settings and Auto ratios, and sets the bandwidth filter types. Refer to Setting Bandwidth Parameters.

Provides trace- and detection-related controls to set trace behaviors, presets, and access to the trace/detector settings table. When in Spectrogram view, also provides spectrogram cursor controls. Refer to Setting Trace Parameters.

Provides controls for sweep behaviors, number of measurement points, and gated sweep settings (with Option 90). Refer to Setting Sweep Parameters.

Traditional markers are not available in Pulse Analyzer.

Limit is not available in Pulse Analyzer.

Controls the trigger source, delay and holdoff, and trigger slope settings. Refer to Setting Up Triggering.

Used to select measurements such as spectrum, channel power, occupied bandwidth, adjacent channel power, spectral emissions mask, and opens the spectrogram. Refer to Measurement Setup.

Measurement controls for setting up advanced measurements. This menu always displays setting options for the current active measurement (refer to SETUP Menu).

Opens the PRESET menu with selective trace, marker, and setup preset commands, or an all inclusive analyzer preset command. Refer to Presetting the Analyzer.

Used to save and recall instrument setups and measurements, and screen images. Also provides access to save on event controls. Refer to FILE Menu and “File Management” section of the instrument’s user guide.
