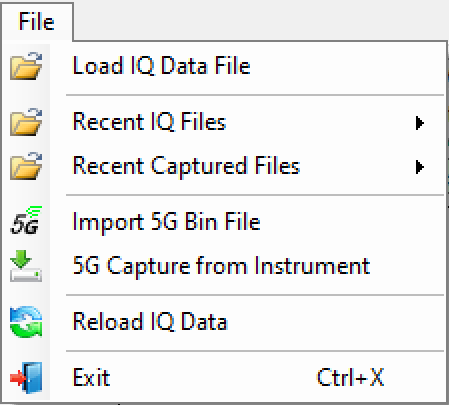

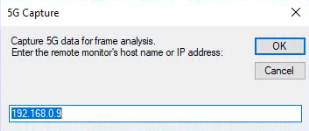

-  | Load IQ Data File Browse to find and load an IQ file Recent IQ Files Open to display the recent IQ files that have been viewed. Basic information is stored and subsequently when the same file is opened again it is very fast. Along with the basic file description, user settings such as markers are also stored in the same place. Recent Captured Files Open to display the recently captured IQ files. This command minimizes the need to browse the file folders to search for the recently captured and saved IQ files. Import 5G Bin File Open the browse dialog to load a stored data file for 5G frame analysis. A selected .bin file will automatically open to a .dgzm file. 5G Capture from Instrument Opens a 5G capture dialog as shown. Enter the IP address of the remote monitor or analyzer for direct communication with the MX280005A 5G Frame Analysis menu to initiate a live connection capture, data transfer, and generate the images with the single button press.  Reload IQ Data Reload the most recent viewed file. Exit: Exits the program. |
