The instrument applications/modes are selected from the 9-dot icon or the icon of the current measurement mode. Note that VVM is referred to as an application and the displayed icon is referred to as mode. To select an application or a mode, press the 9-dot icon in the title bar or the current application/mode icon to display all the available modes, as illustrated in Figure: Instrument Applications and Corresponding Mode. Simply touch the icon to load the new application/mode. The applications available for selection depend on the options that are installed and activated on your instrument. Some measurements and views are accessed via other measurement setup menus.

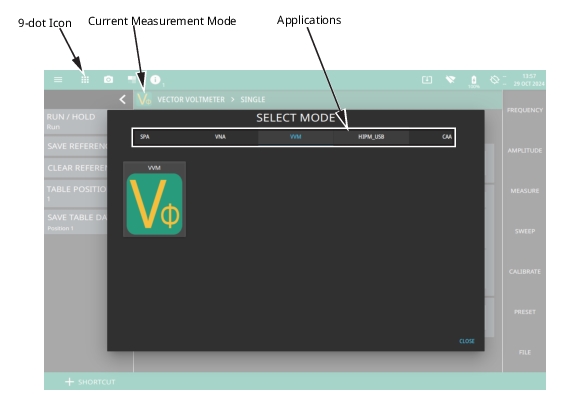

Instrument Applications and Corresponding Mode
Vector Voltmeter – SINGLE View
The Vector Voltmeter supports two main display views; Single and Table. Option 15 includes A/B & B/A Ratio capability in addition to 1 port transmission and 1 port reflection measurements. The Single view displays single reference based on the selected TYPE and FORMAT. The Single display is the default view.

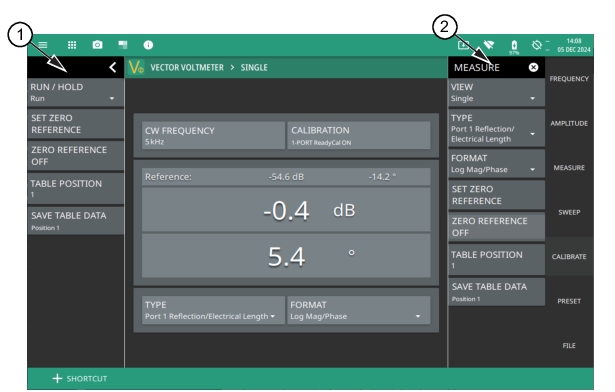

Vector Voltmeter - SINGLE View
1. The status panel provides quick access to common Vector Voltmeter settings. Refer to Status Panel.
2. The Measure menu lists the measurement types and formats. Refer to MEASURE Menu for detailed information.
Vector Voltmeter – TABLE View
The Table view provides a convenient measurement of up to 100 devices including one reference simultaneously. From the main menu press MEASURE > VIEW > TABLE to set the VVM display view to Table.

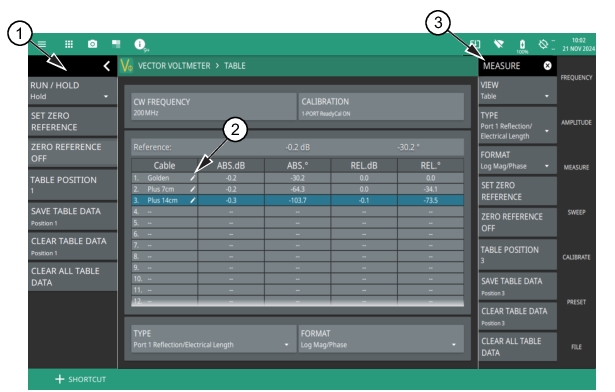

Vector Voltmeter - TABLE View
1. The status panel provides quick access to common Vector Voltmeter settings. Refer to Status Panel.
2. The edit icon appears only if you press SAVE TABLE DATA from the status panel or MEASURE menu. Use the edit icon to enter the name of the cable and save the table data at a specified position.
3. Access MEASURE menu from the main menu. Refer to MEASURE Menu for detailed information.
