APX6000/APX7000 Front End Filter Rx Alignment
:
APX6000 FEF Cable Setup Procedure
APX6000 FEF Cable Setup Procedure
For the APX6000 FEF Cable Setup Procedure, refer to
Figure: APX6000 Front End Filter (FEF) Rx Alignment Setup
. For the APX7000 cable setup, refer to
APX7000 FEF Cable Setup
.

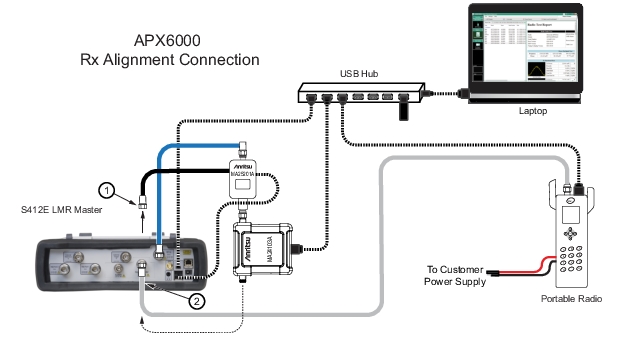

APX6000 Front End Filter (FEF) Rx Alignment Setup
1.
MA25201A Cable from the S412 Signal Generator Out Port
2.
Silver Cable from the MA24103A Port
Procedure
1.
Disconnect the MA25201A cable from the S412 Signal Generator Out port.
2.
Disconnect the portable radio cable (silver cable) from the MA24103 port.
3.
Move and connect the Silver Cable from the radio under test directly to the S412E Signal Generator Out Port.
4.
Press Next to perform the FEF Rx alignment.
5.
When the FEF Rx alignment is complete, reconnect the MA24103A silver cable.
6.
When complete, reconnect the test setup as shown in
Portable Radio Test Setup
, or
Mobile Radio Test Setup
.
After the setup is restored, the software will run the Setup Check to ensure that the cables have been properly restored to the correct positions. To prevent damage, do not continue testing until the setup test passes.
