Radio Test and Alignment History

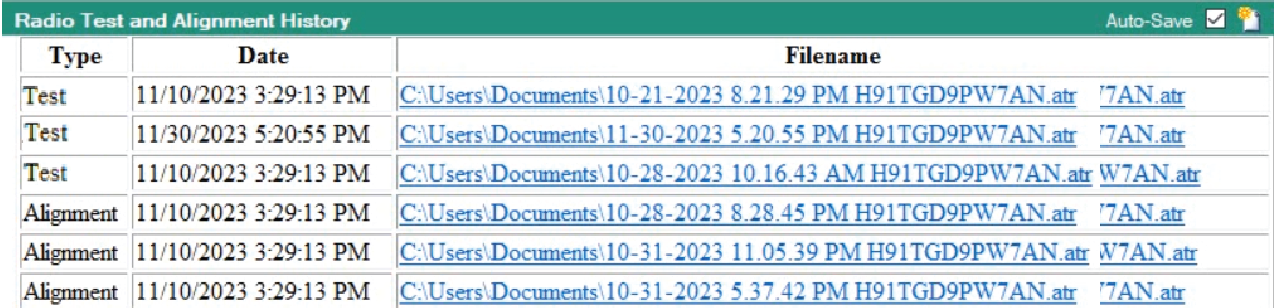

The Radio Test and Alignment History window provides links in the Filename column to the stored Radio Test Report location as shown in Figure: Radio Test Report.
Radio Test Report
Type
Provides the report type of the associated report file.
Date
Provides the most recent date the test was run. If the same test is run again, the file will sequence down and the latest test run will be added on top of the list.
Filename
Provides a link to the file associated with the radio test report. The date in the filename shows the date and time stamp of the completed test.
Auto-Save Toolbar
The Auto-Save toolbar is shown in Figure: Auto-Save Toolbar.
Auto-Save Toolbar
Auto-Save Icons
The Auto-Save icons are shown in Figure: Auto-Save Icons.
Auto-Save Icons
-
Auto Save
Automatically save test reports after a test or alignment process is complete.
Clear
Clear the report window of all content.
Save
Save the report. Performs the same function as the File menu Save Report submenu.
Print
Provides a standard Windows print dialog box.
