The System menu identifies the instrument model and serial number.
HOSTNAME/IP ADDRESS
Displayed only on the ARRT software. This field is used to enter the IP address or hostname of an instrument that is connected to the network.
When SIMULATION MODE is toggled on, the software will connect locally to provide some UI functionality. Toggle the simulation mode and select the product from the drop-down and click START button to get connected with the local host. Click STOP button to get disconnected.
Note that some of the system menus have limited functionality when the software is connected to the Simulation Mode. When connected to an instrument, refer to System Menu.

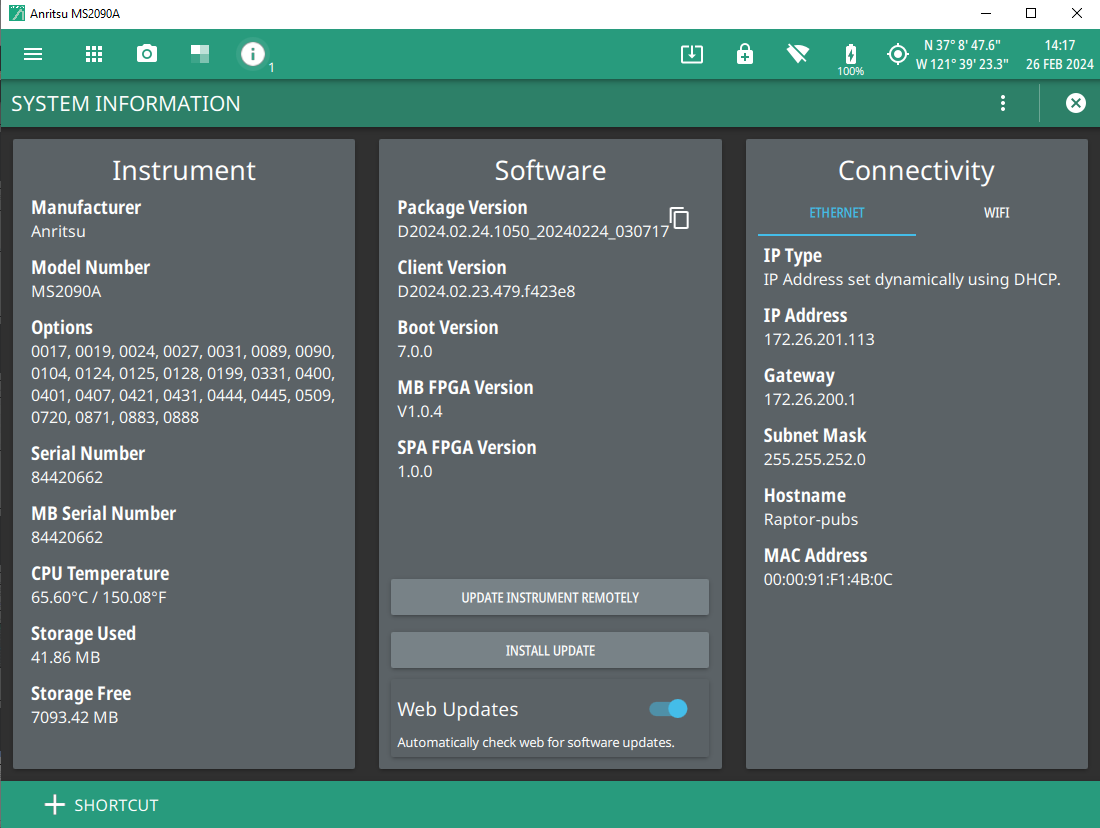

SYSTEM INFORMATION
Displays information about the instrument and software. Refer to System Information.
SETTINGS
Provides access to setting the display color theme and screenshot capture settings (refer to Display Settings).
2. Click ADD CUSTOM CERT on the bottom to upload RSA encryption PEM certificate saved in your PC.
Connection Certificate Icon
Note
The Connection Certificate icon is available only on Anritsu Remote Tool installed on the PC and not on the instrument.
FILES (File Management)
The Remote Tool’s FILES menu is used for all file operations when connected to either an instrument or working in simulation mode. The FILES menu when accessed will launch Windows File Explorer and provides the similar capability as the FILE MANAGEMENT window on the instrument.
You can save, recall or open a file saved in your computer. Note that files cannot be recalled from or saved to the internal memory of the connected instrument. On the contrary, SAVE ON EVENT files will always be saved on the instrument and not on the PC. The FILES menu will be disabled on the instruments installed with Secure Data (Option 7). Connect an external USB memory device to one of the USB ports to save the Save On Event files because Option 7 disables the internal directory of the instrument by default.
1. Access the System menu (3-line icon in the upper left corner).
2. Click FILES to access the FILES menu.
Files Menu
FILE TRANSFER
File Transfer menu provides the capability of saving the instrument files to your local PC. You can transfer selected or all the files from instrument’s internal directory to your computer. Follow the steps below to save the internal files:
1. Access the System menu (3-line icon in the upper left corner).
2. Click FILE TRANSFER to view the list of internally saved files for e.g. screenshots. See Figure: File Transfer Menu.
3. Click the desired file from the list to save it locally on to your computer.
4. To save multiple files, click the multi-select icon on the upper right and select the desired files as shown in the figure below.
File Transfer Menu
5. Click Download icon to open the Windows File Explorer and choose the desired location to save the files on your PC.
Tools Menu
1. Access the System menu (3-line icon in the upper left corner).
2. Click TOOLS to access the list of options as shown in Figure: Tools Menu.
Tools Menu
-
IQ STREAMING
Opens IQ Streaming Tool. Refer to IQ Streaming Tools section of Spectrum Analyzer Measurement Guide (10580-00447).
MAP TOOL
Opens Map Tool. Refer to Map Tool section of Spectrum Analyzer spectrum analyzer measurement guide (10580-00447).
Facilitates report generation in a web browser. Click to open REPORT GENERATOR- PREVIEW window in the browser. Refer to PDF REPORTS for information about report generation. You can either print or save a copy of the report in the PDF format.
DISCOVERY TOOL
The DISCOVERY TOOL displays all of the compatible units found on the local network. Select an instrument and then click CONNECT.
